具有两个止动按钮的双杆拉手

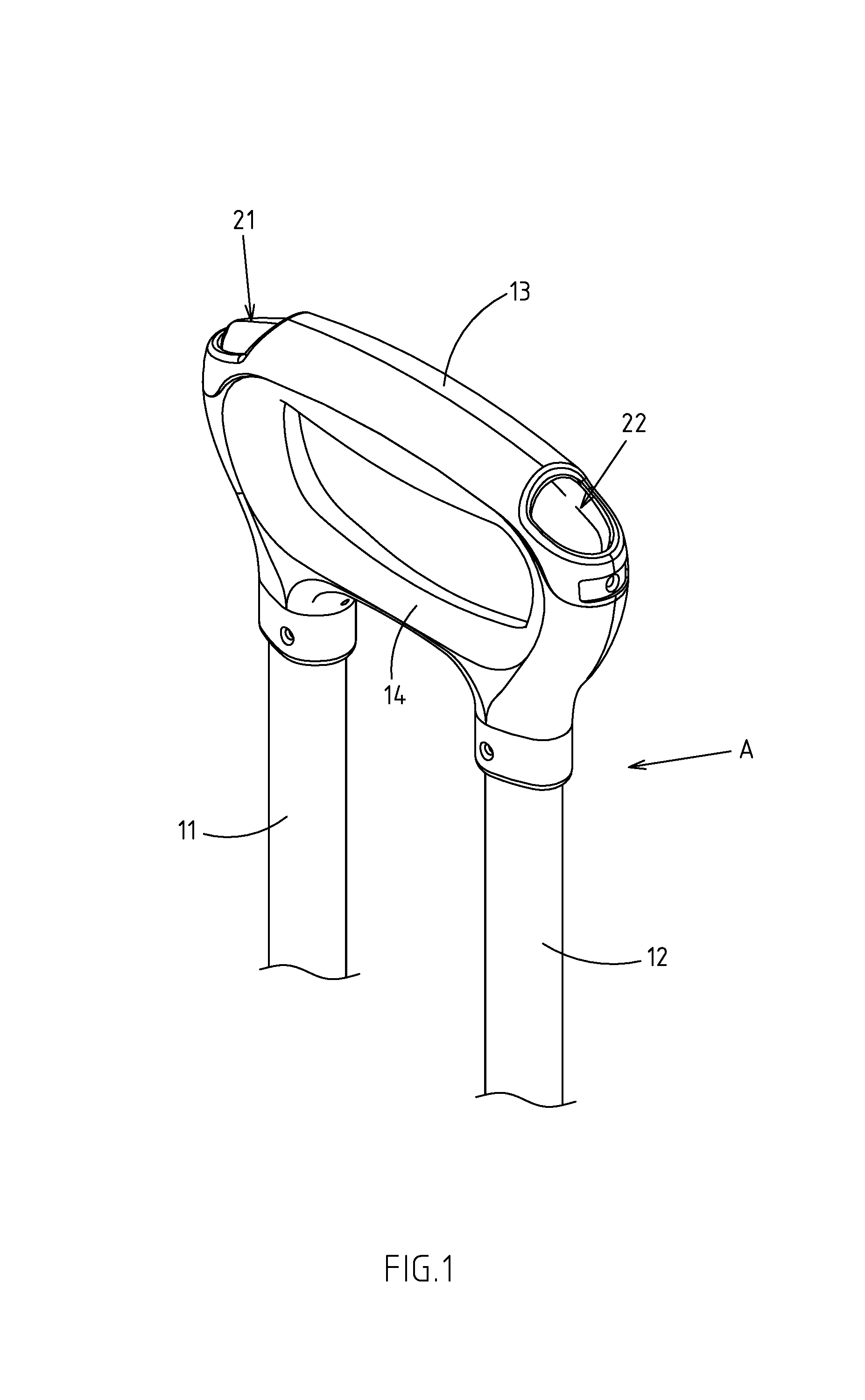

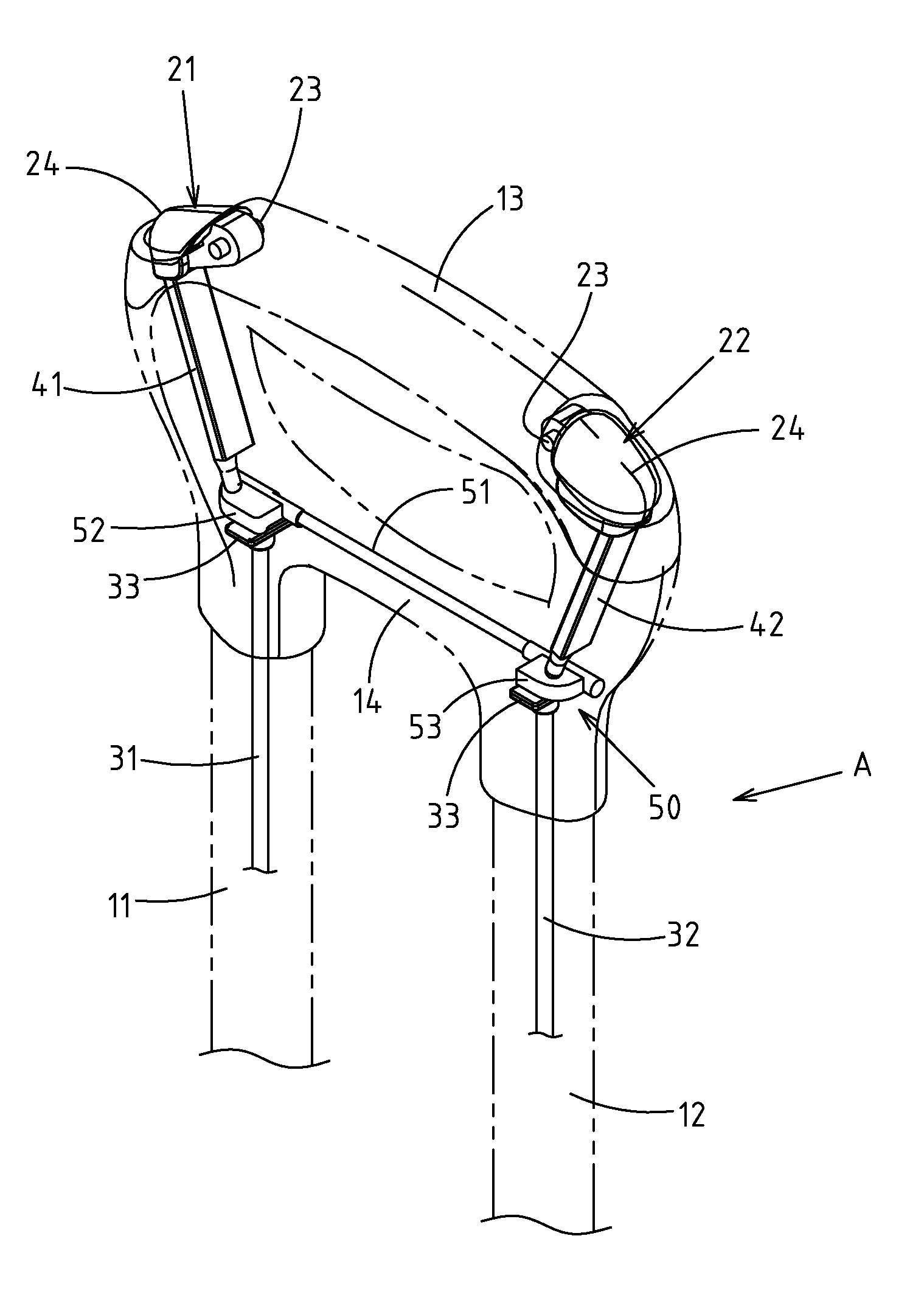

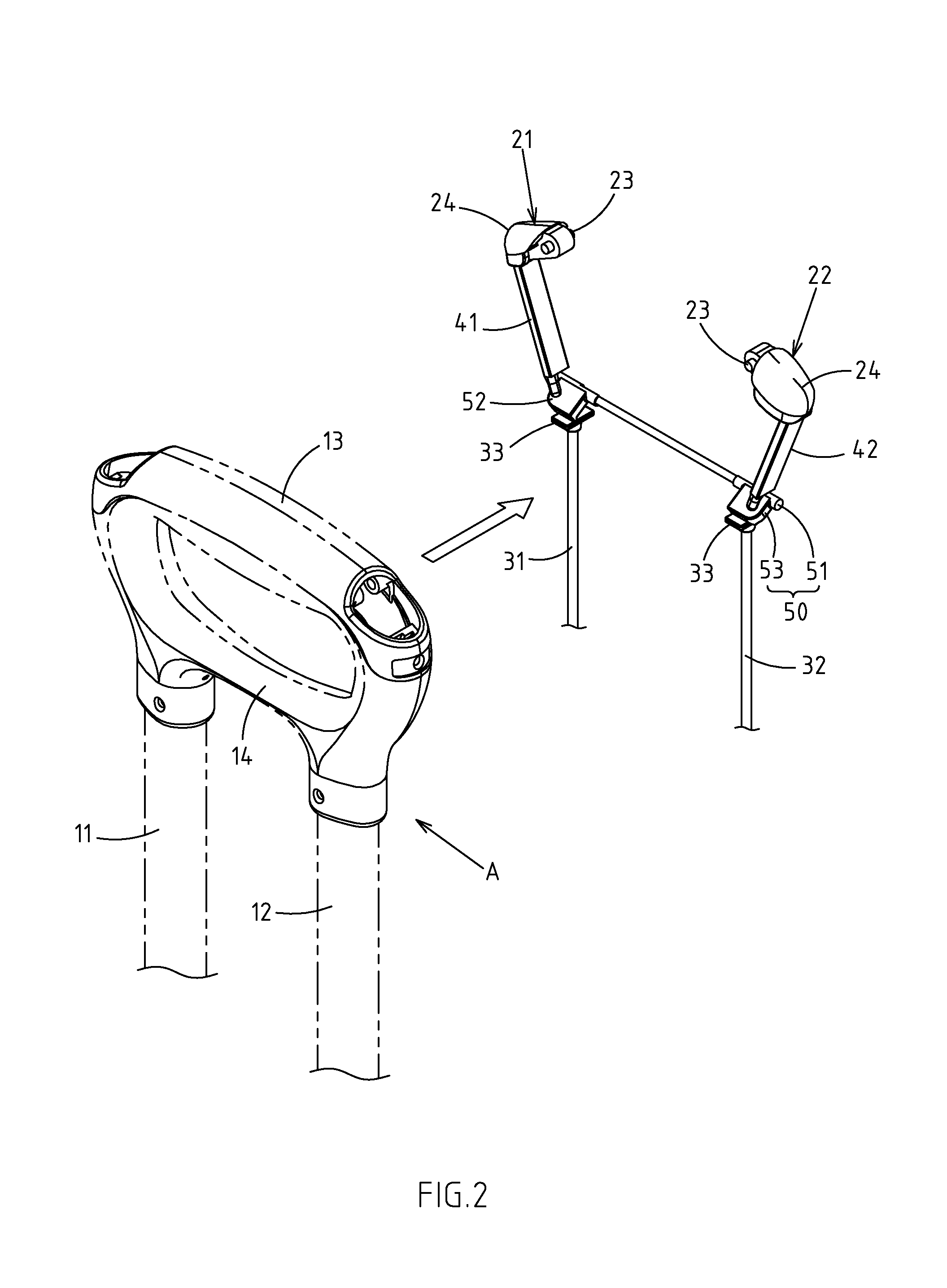

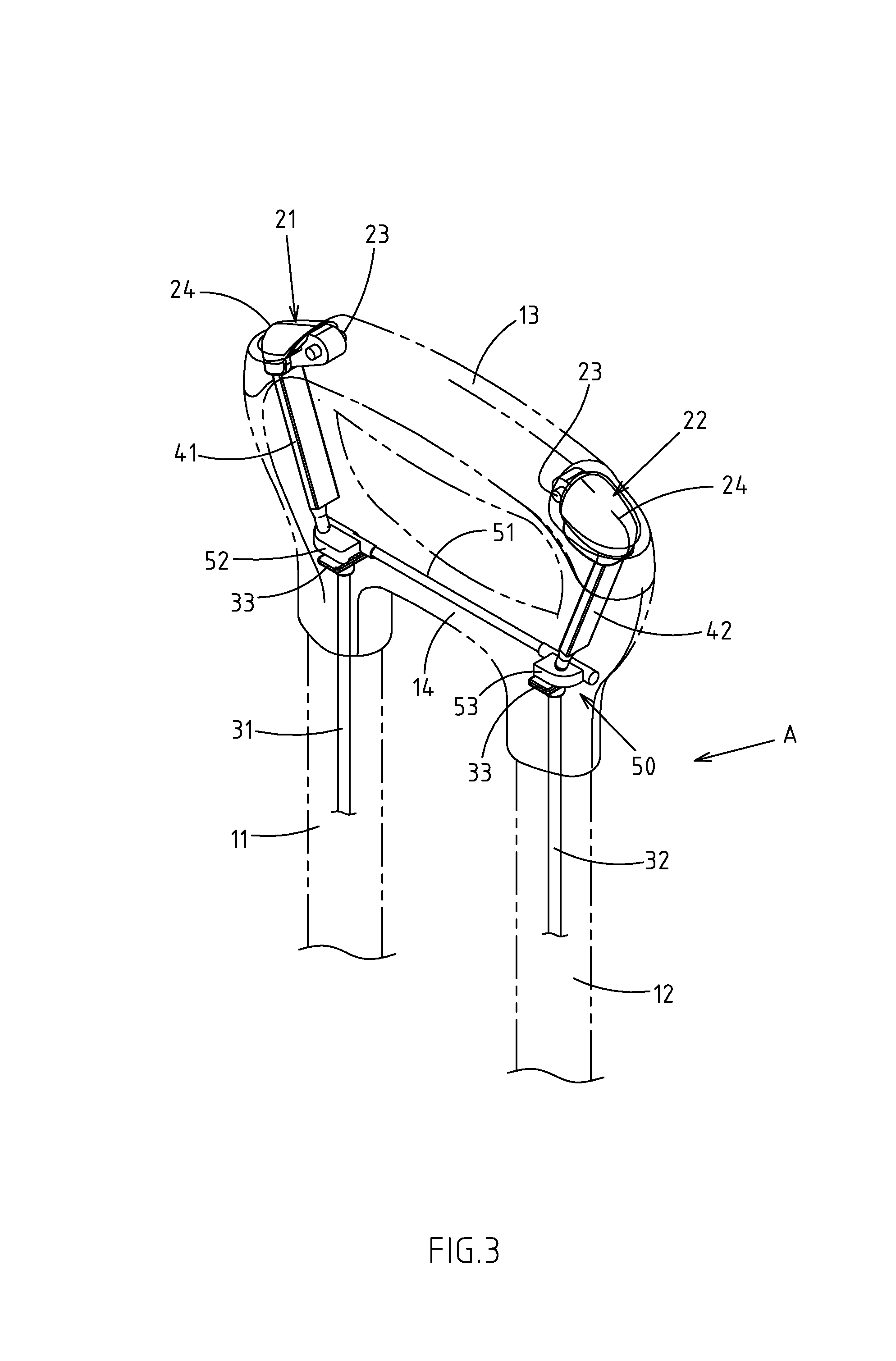

Original abstractThe twin-bar pull handle with two stop buttons includes a twin-bar pull handle, two stop buttons and two brake rods. The twin-bar pull handle has two riser pipes, a transverse holding rod and a hollow horizontal tube with both sides connected to the top of two riser pipes. Two stop buttons are separately placed at both sides of transverse holding rod, and a spinner is provided at exterior of stop button for pressing. Two brake rods are separately placed into two riser pipes, with the bottom connected to the fixation member of pull handle that allows downward shift to release the fixation member for flexible operation of pull handle. The two contact legs enable the top to be connected separately to the top of spinners of two stop buttons, and the bottom to protrude towards the top of two brake rods. A shared rotating drive element, which is transversely placed inside the hollow horizontal tube, comprises a rotation axis and two swinging sheets.
