来源记录显示 Expired
具有覆盖式透明壁的手提包或类似物
Handbag or the like with covered, see-through wall
US-7198083-B1用于手提包，可遮盖或露出透明侧壁以便查看和取放物品。
专利摘要
一种改进的手提包或类似物，其一个完整侧壁由透明面板形成，该透明面板可选择性地暴露以便于查看其中所容纳的物品。透明面板与不透明面板连接以形成顶部具有取物口的容器。由不透明材料制成的外部覆盖面板以覆盖关系可移除地定位在透明面板上，并至少部分地可分离地附接到包结构，允许覆盖面板从覆盖关系移开，从而便于通过透明面板查看个人物品以便于选择和取出。
Original abstractAn improved handbag or the like having one entire side wall formed of a see-through panel which can be selectively exposed to permit facilitated viewing of items contained therein. The see-through panel is joined to an opaque panel to form a receptacle with an access opening at the top. An exterior cover panel of opaque material is removably positioned in covering relation to the see-through panel and at least partially separably attached to the bag structure, allowing the cover panel to be displaced from covering relation to enable facilitated viewing of personal affects through the see-through panel for easy selection and removal.

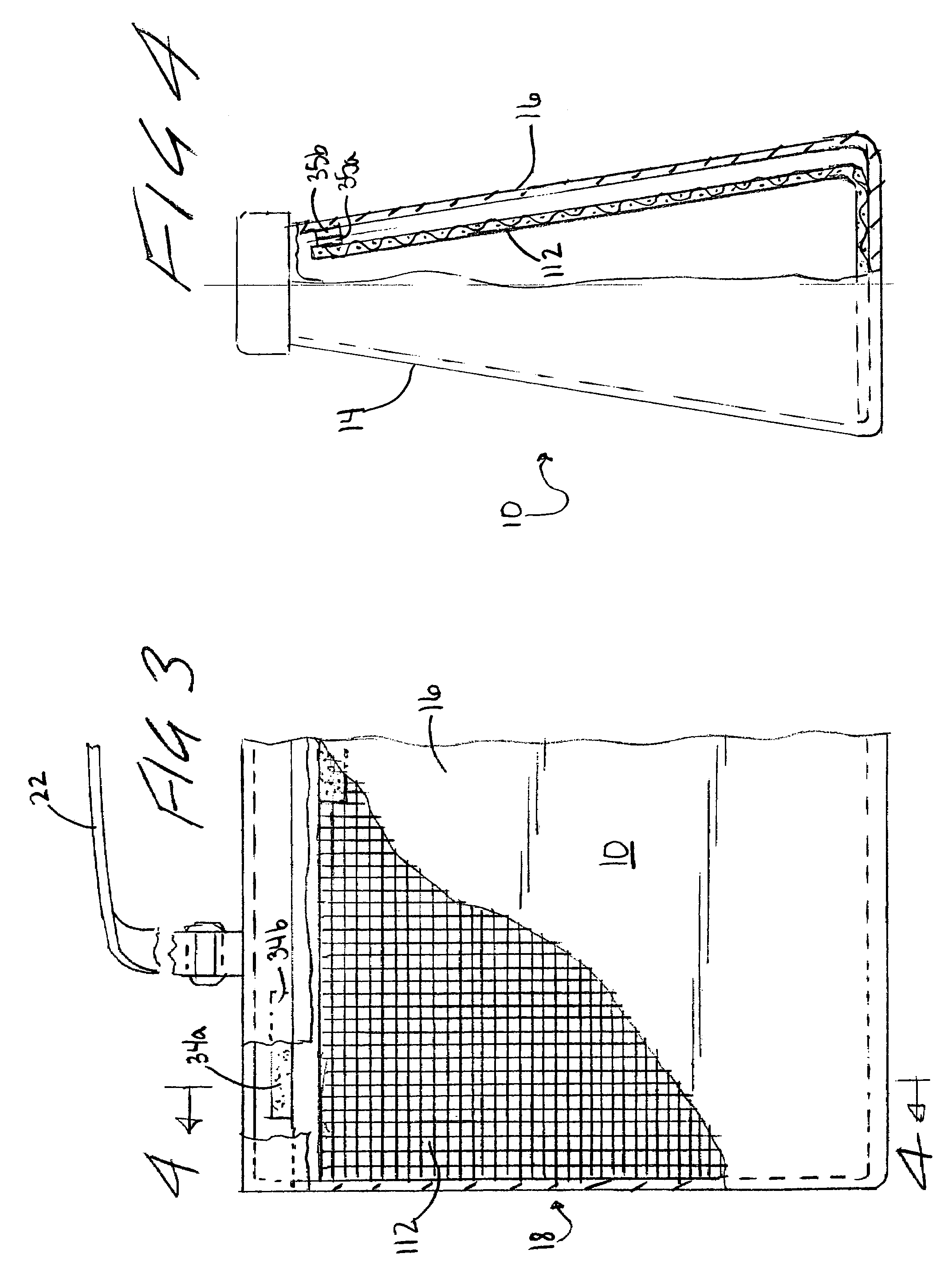

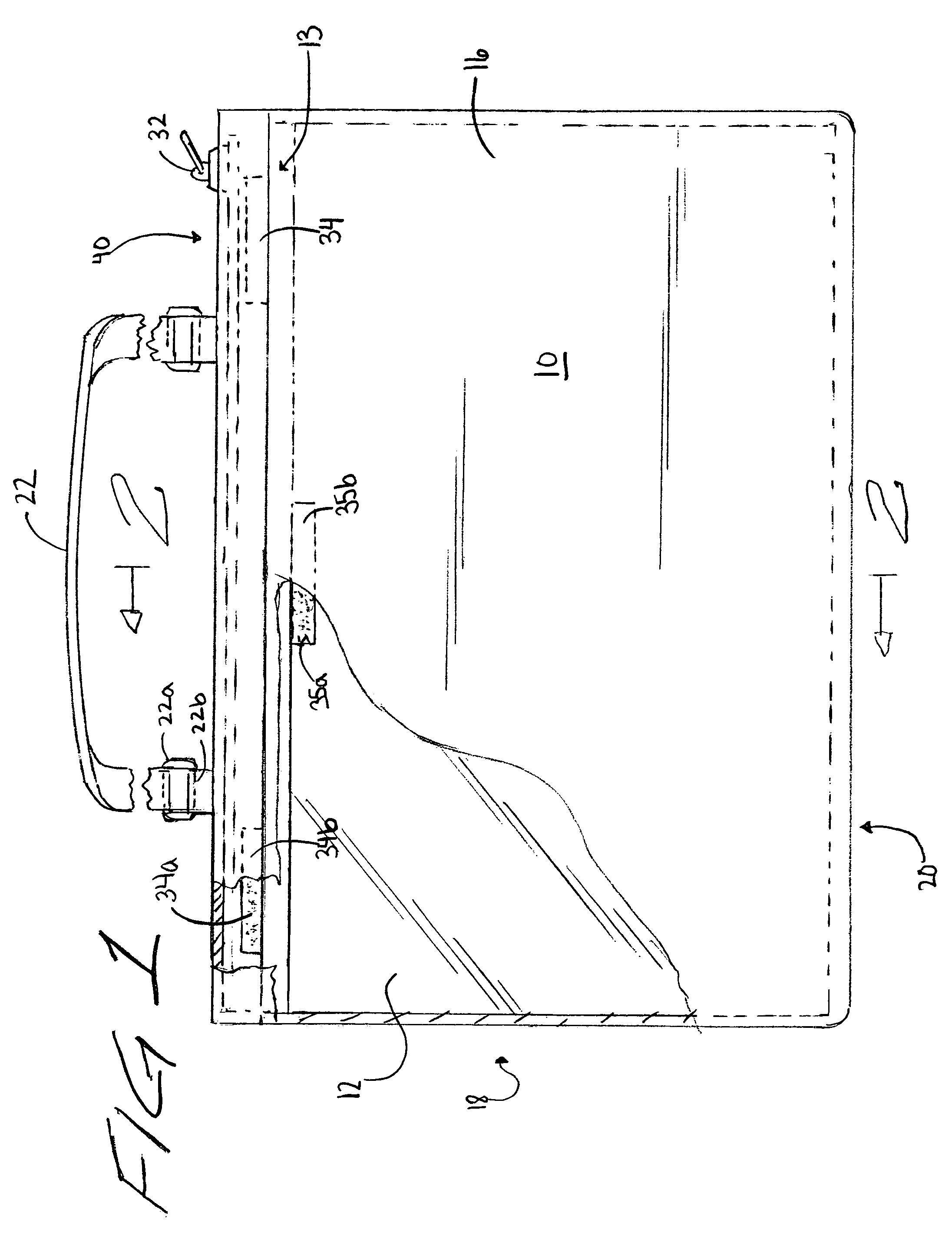

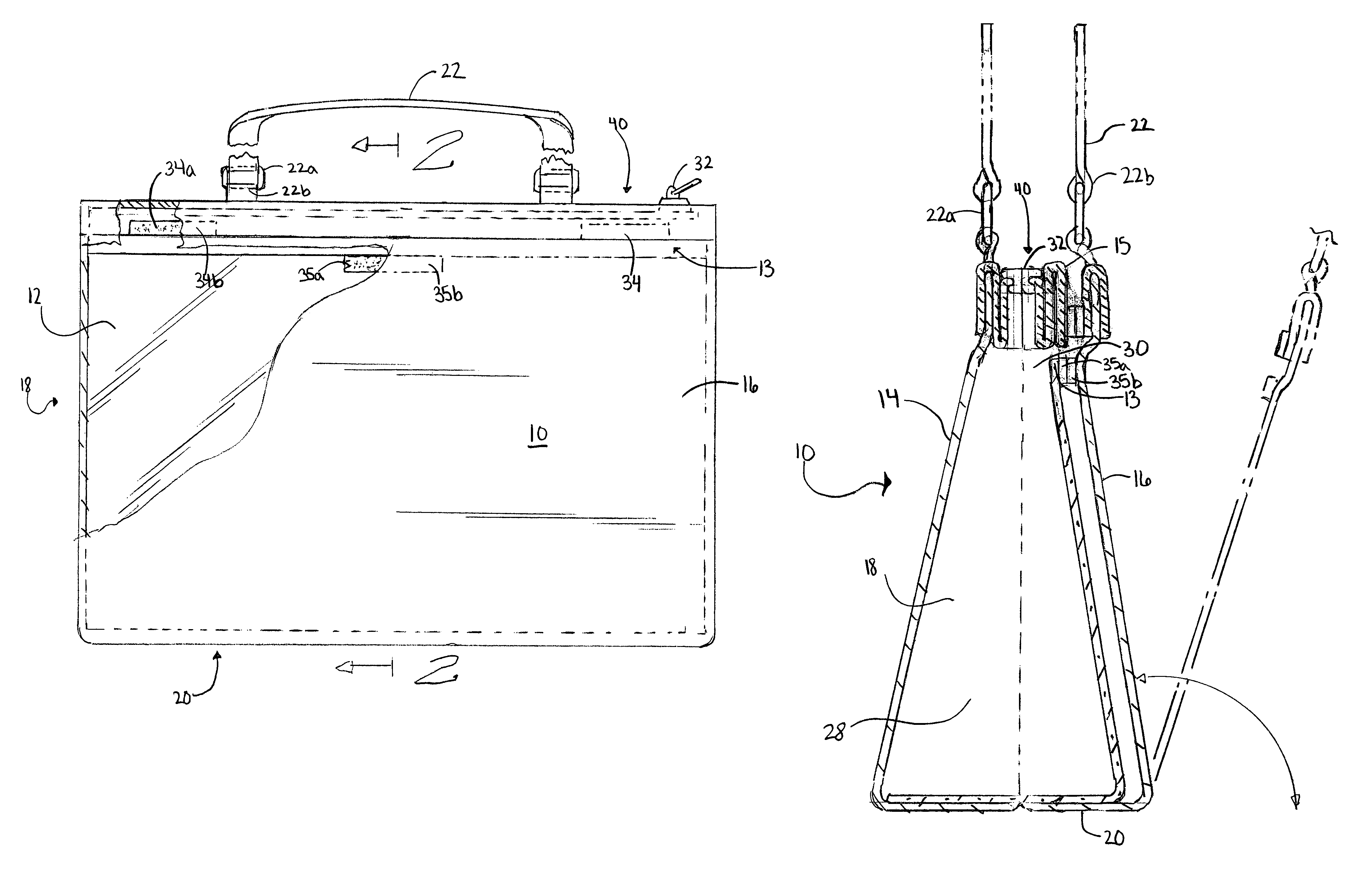

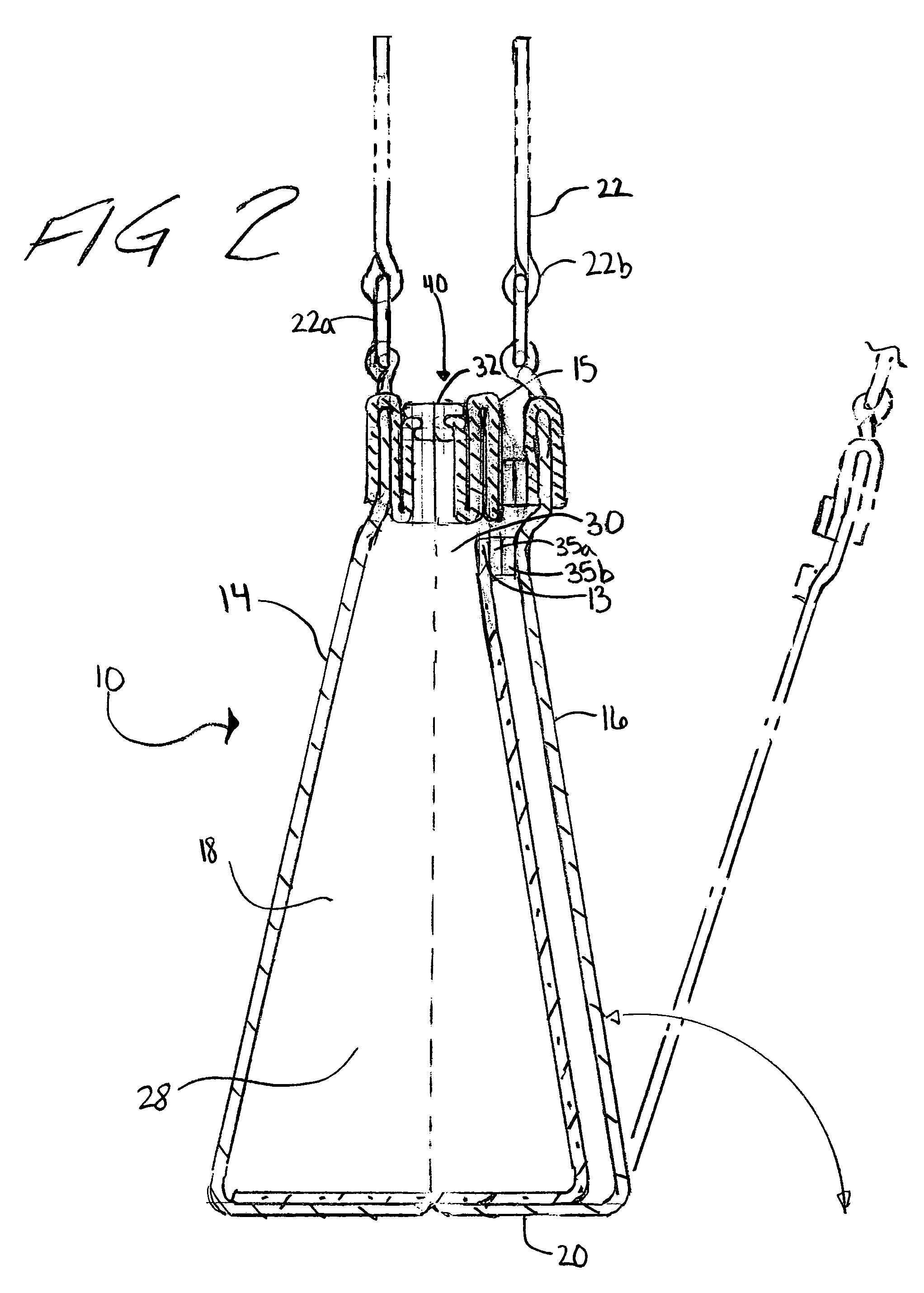

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
相关专利（同品类）
