具有可调节角度握把的拉杆

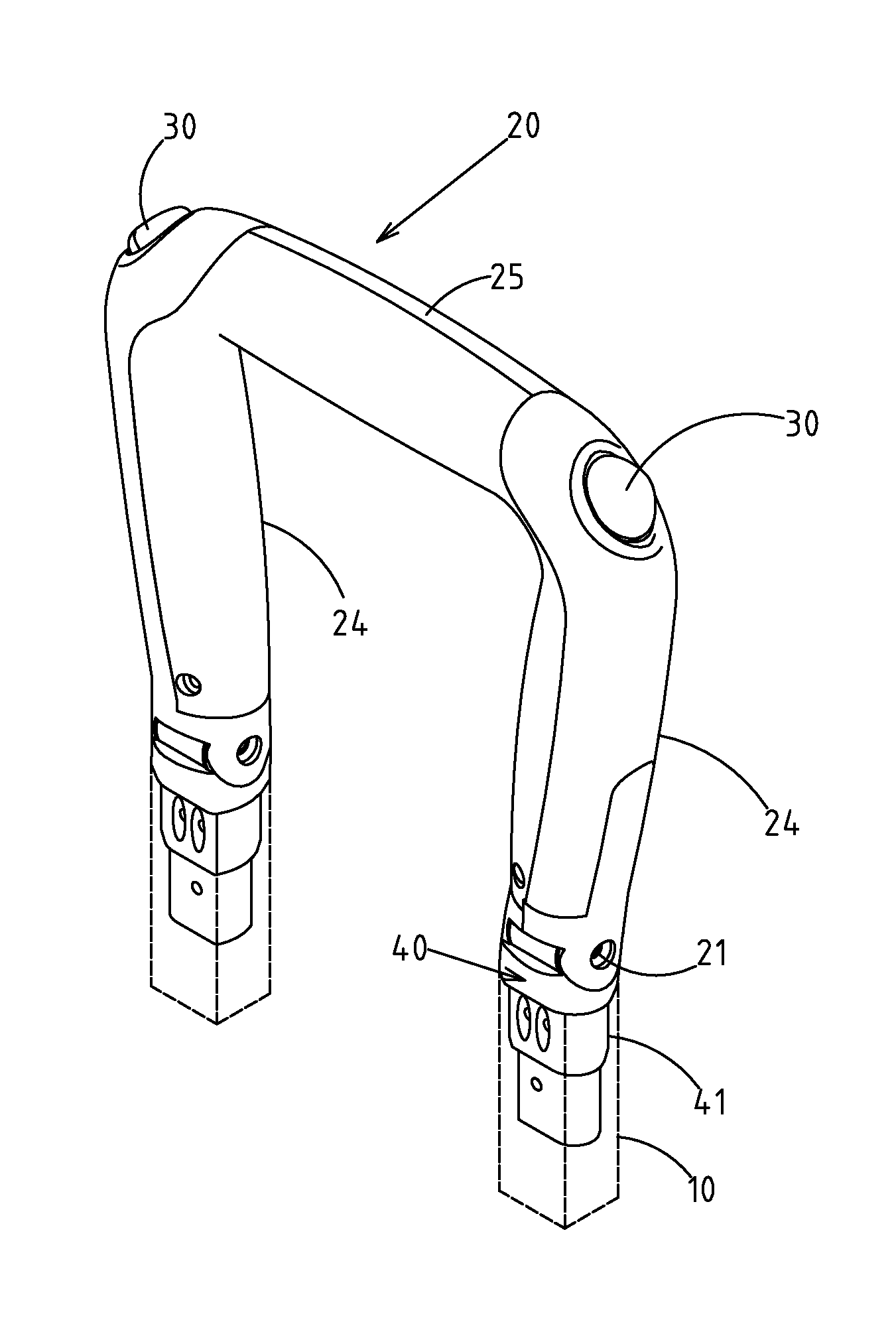

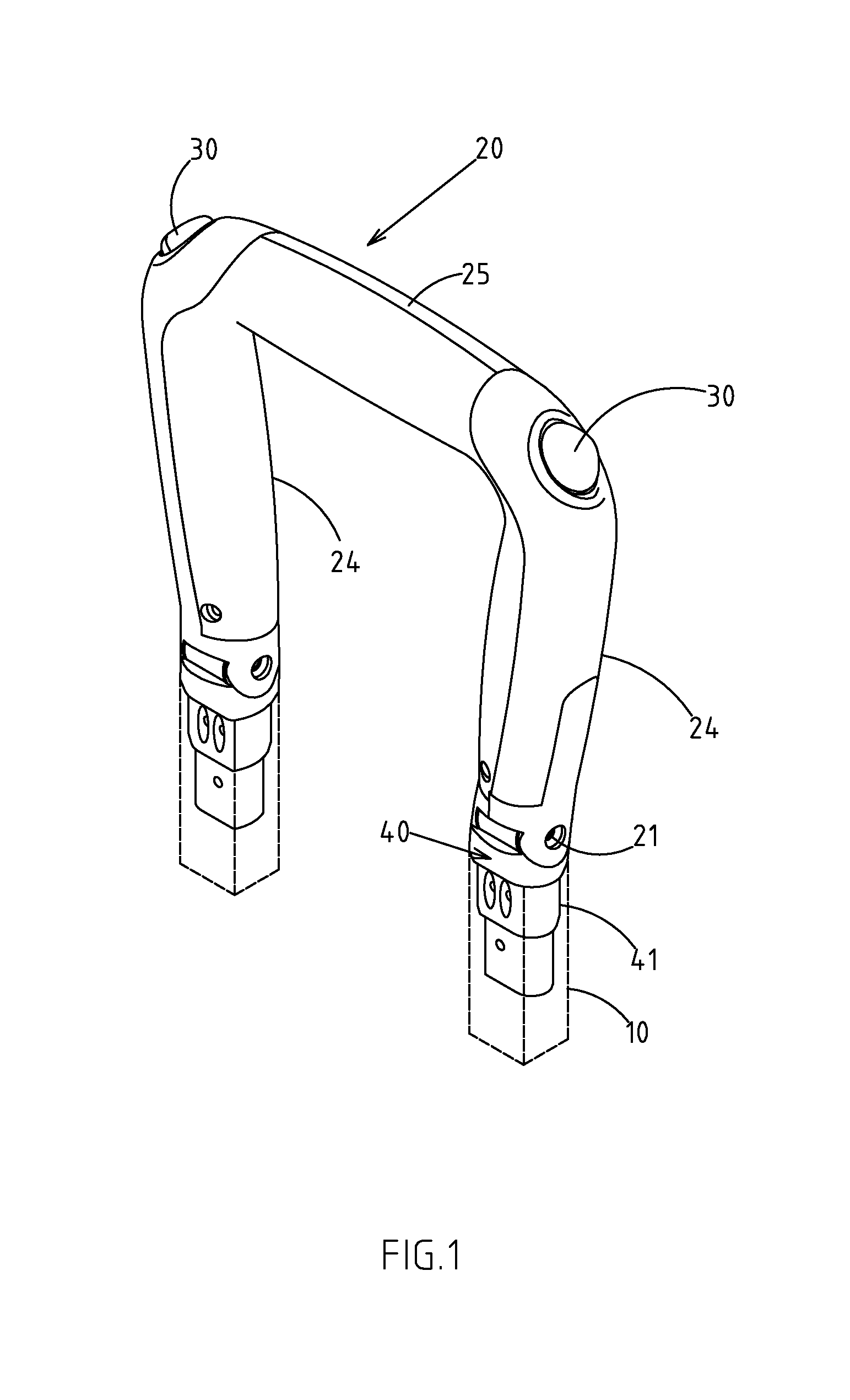

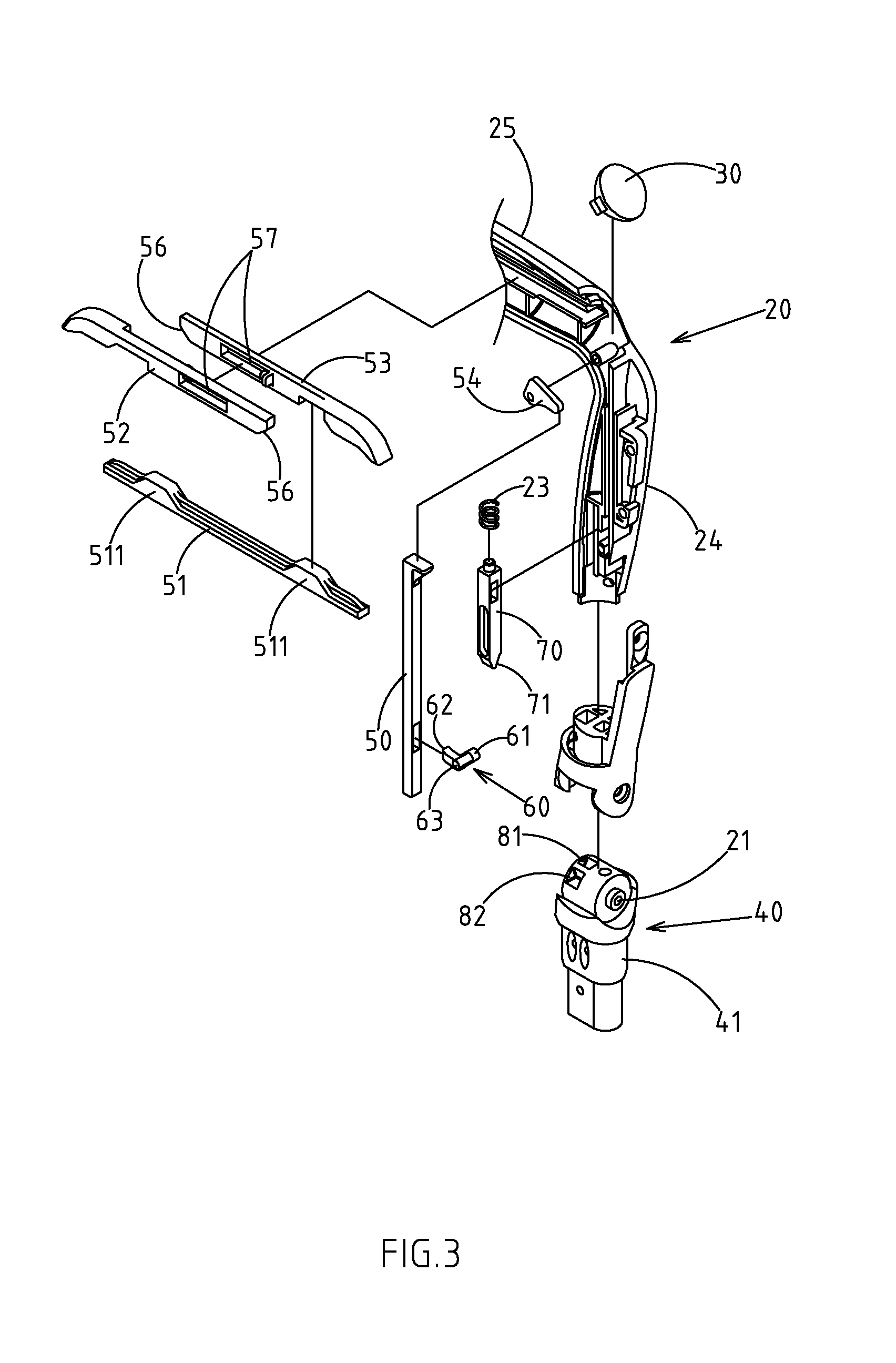

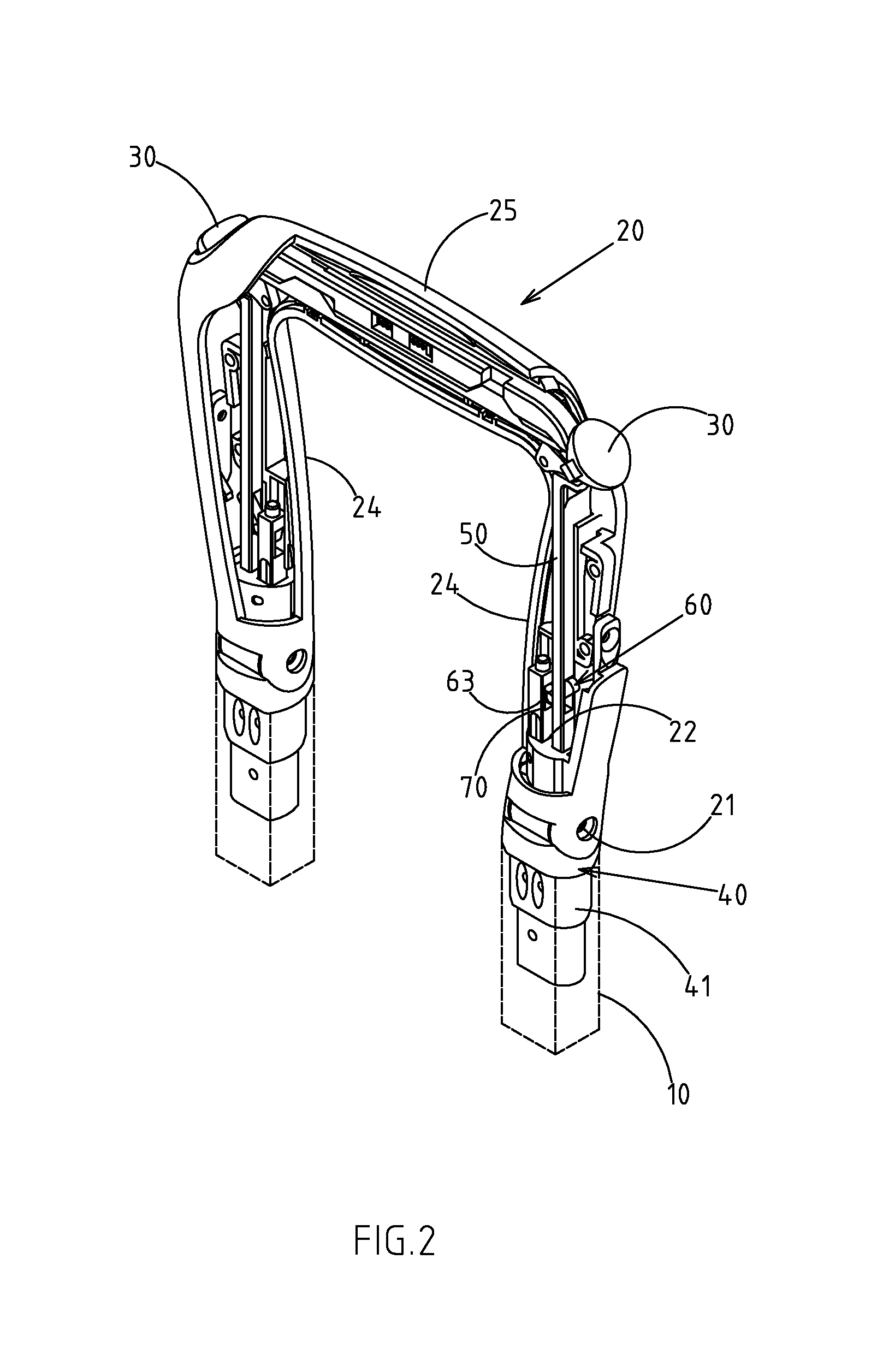

Original abstractAn adjustable grip angle of the grip handle specific to a pull handle of luggage compartment. The bottom of the grip handle is provided with a connecting base, which makes the grip handle rotate round the pivot. A linkage bar is vertically provided within the grip handle. The top of the linkage bar is activated by the button while the bottom of the linkage bar is extended to the base of the grip handle. A rotary bar is provided at the bottom of the linkage bar. The back end of the rotary bar is provided with a fixation pin, which can shift vertically. The top of the fixation pin is connected to the second bar end of the rotary bar. The top of the connecting base is provided with at least two fixation holes, both of which can be joined with the base of fixation pin so as to fix the angle of grip handle when the grip handle stands upright, or stands by a preset degree of curvature.
