手提包整理系统

Purse organizing system

US-7185687-B1

用于整理手提包内部空间,便于分类存放物品。

专利摘要

公开了一种用于可拆卸地放置在手提包中的手提包整理系统。该手提包整理系统包括一个具有顶部和底部并在相对端之间延伸的插入件。该插入件包括一对横向间隔的侧壁,每个侧壁具有相对端。该插入件还包括一对纵向间隔的端壁,每个端壁在侧壁之间延伸。该插入件还包括一个在侧壁和端壁之间延伸的底壁,用于封闭底部并形成内部空间。一个敞开的顶部位于封闭底部的对面。该插入件还包括至少一个在侧壁之间横向延伸的分隔壁,以将内部空间分成两个隔间。

Original abstractA purse organizing system is disclosed for removably positioning in a purse. The purse organizing system comprises an insert having a top and a bottom and being elongated between opposite ends. The insert includes a pair of laterally spaced side walls with the side walls each having opposite ends. The insert also includes a pair of longitudinally spaced end walls with each of the end walls extending between the side walls. The insert also includes a bottom wall extending between the side walls and the end walls for closing a bottom and creating an interior. An open top is located opposite the closed bottom. The insert also includes at least one divider wall extending laterally between the side walls to divide the interior into two compartments.

专利附图(8)

US-7185687-B1 figure 1
1

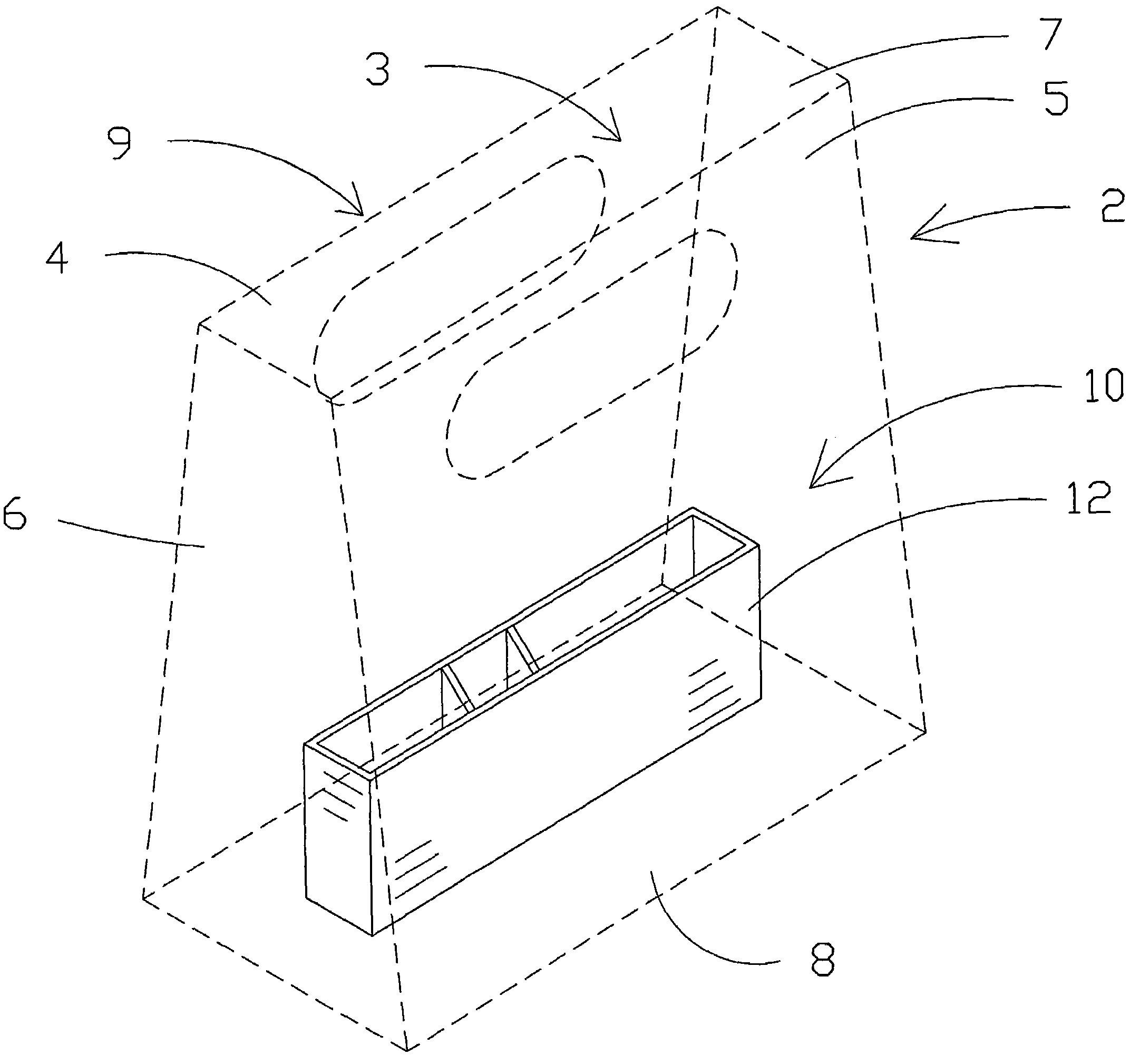

US-7185687-B1 figure 2
2
US-7185687-B1 figure 3
3

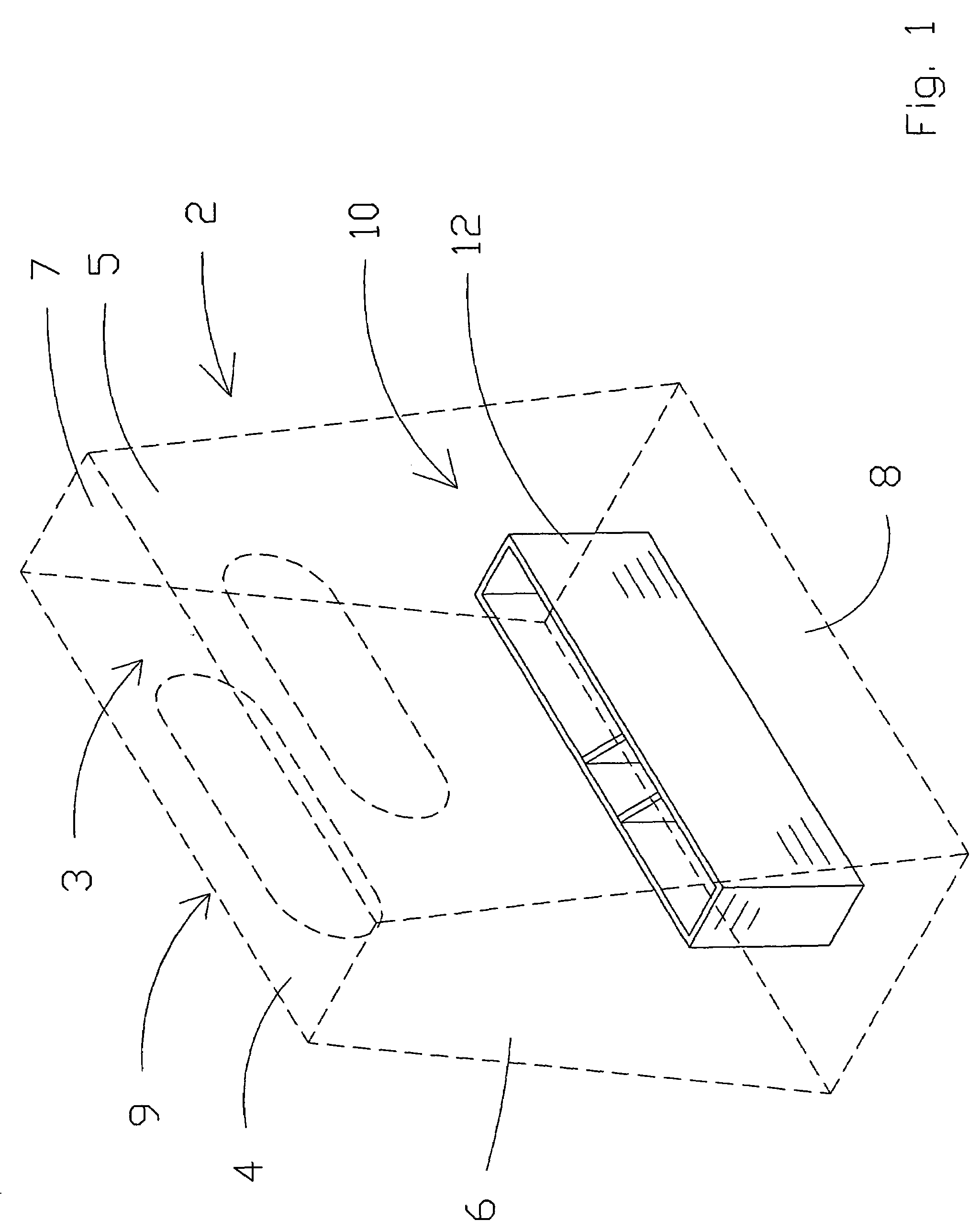

US-7185687-B1 figure 4
4
US-7185687-B1 figure 5
5

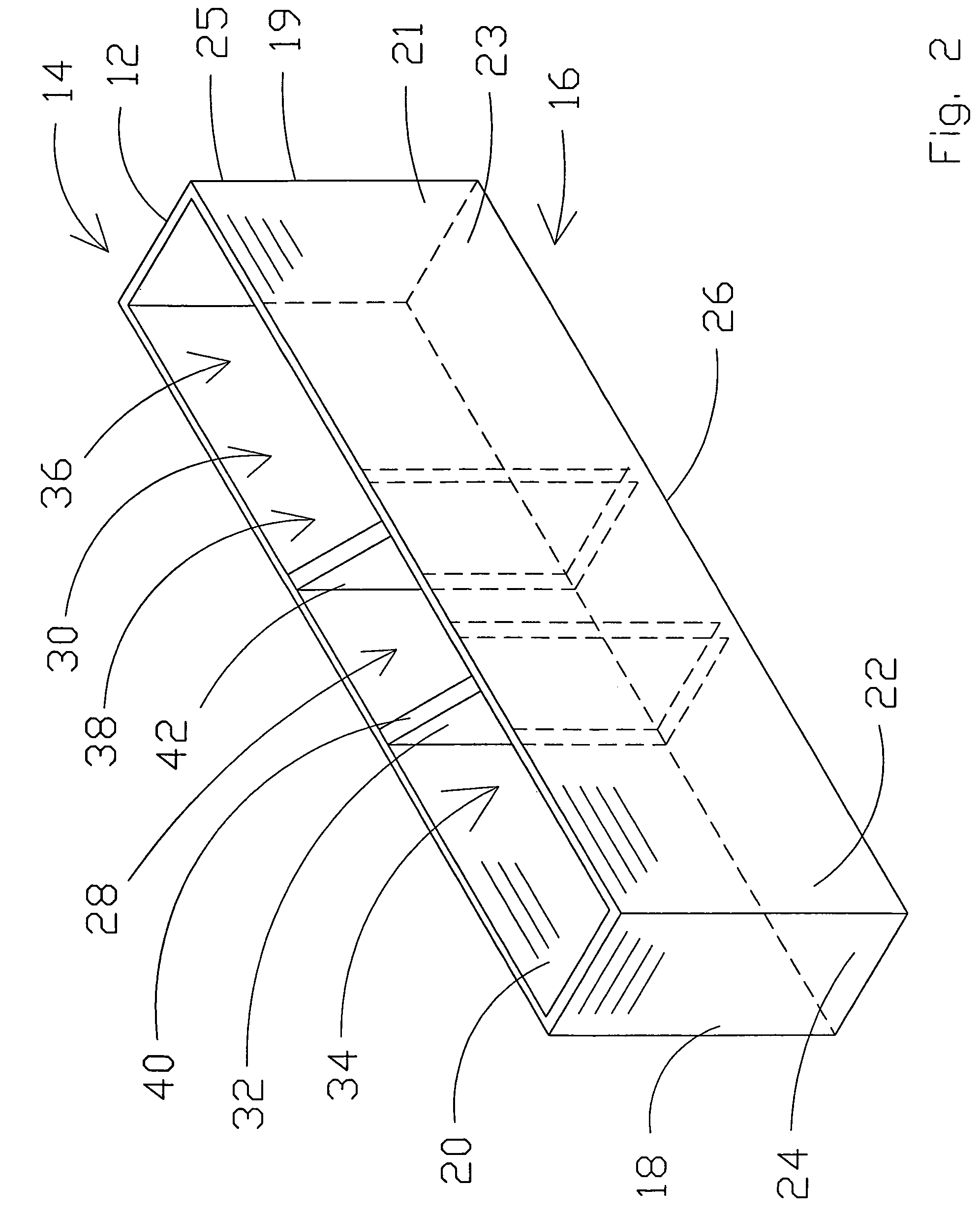

US-7185687-B1 figure 6
6
US-7185687-B1 figure 7
7

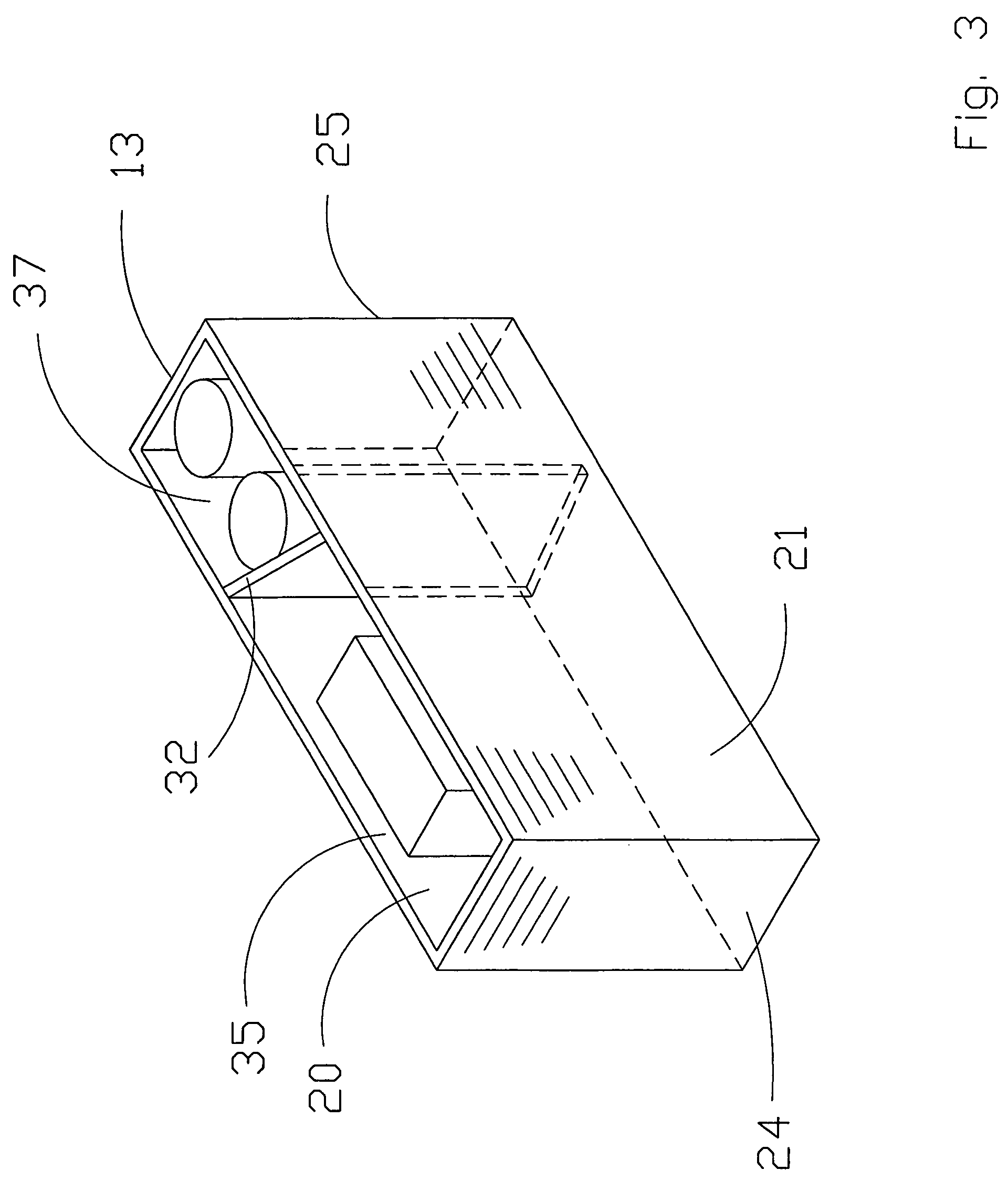

US-7185687-B1 figure 8
8
