磁性闭合和照明装置及包含其的提包
Magnetic closure and illumination means and carrying bags incorporating same
US-7178936-B2用于包袋的磁性闭合与自动照明。
专利摘要
一种具有照明机构的磁性闭合装置。该装置包括：第一可拆卸闭合部件，其具有照明机构、电子电路、用于操作照明机构和电子电路的致动器、以及具有第一接近表面的第一磁性紧固件。该装置还包括第二可拆卸闭合部件，其具有第二磁性紧固件，其中第二磁性紧固件包括能够与第一接近表面形成磁接合构造的第二接近表面。致动器设置在第一磁性紧固件附近并位于第二接近表面的覆盖范围或投影内，并通过第一和第二接近表面之间的分离而被致动。
Original abstractA magnetic closure device having an illumination mechanism. The device includes a first detachable closure part that has the illumination mechanism, an electronic circuit, an actuator for operation of the illumination mechanism and the electronic circuit, and a first magnetic fastener with a first approaching surface. The device also includes a second detachable closure part that has a second magnetic fastener, wherein the second magnetic fastener includes a second approaching surface that is capable of forming a magnetically engaged configuration with the first approaching surface. The actuator is disposed adjacent to the first magnetic fastener and within the footprint or projection of the second approaching surface, and is actuated by the separation between the first and second approaching surfaces.

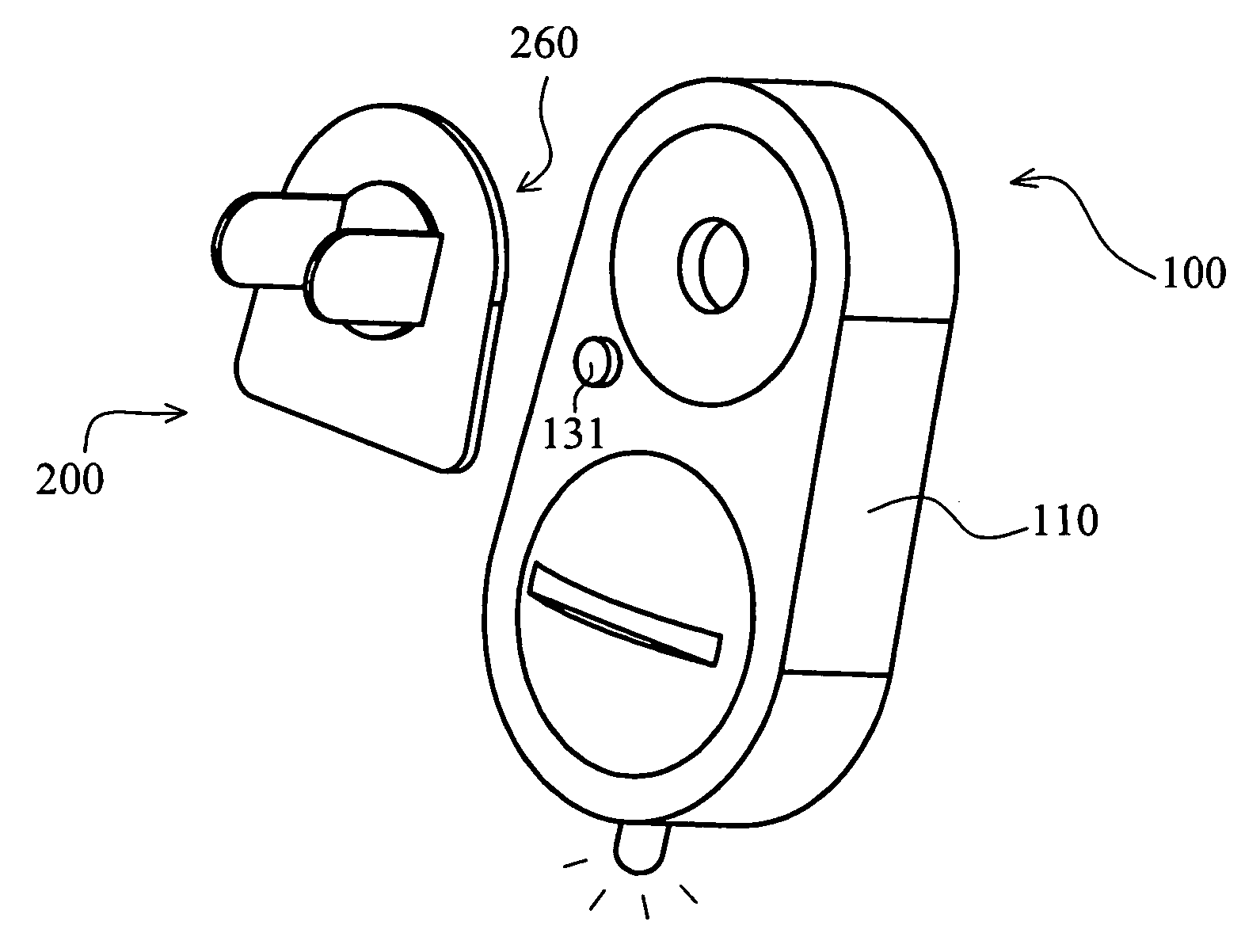

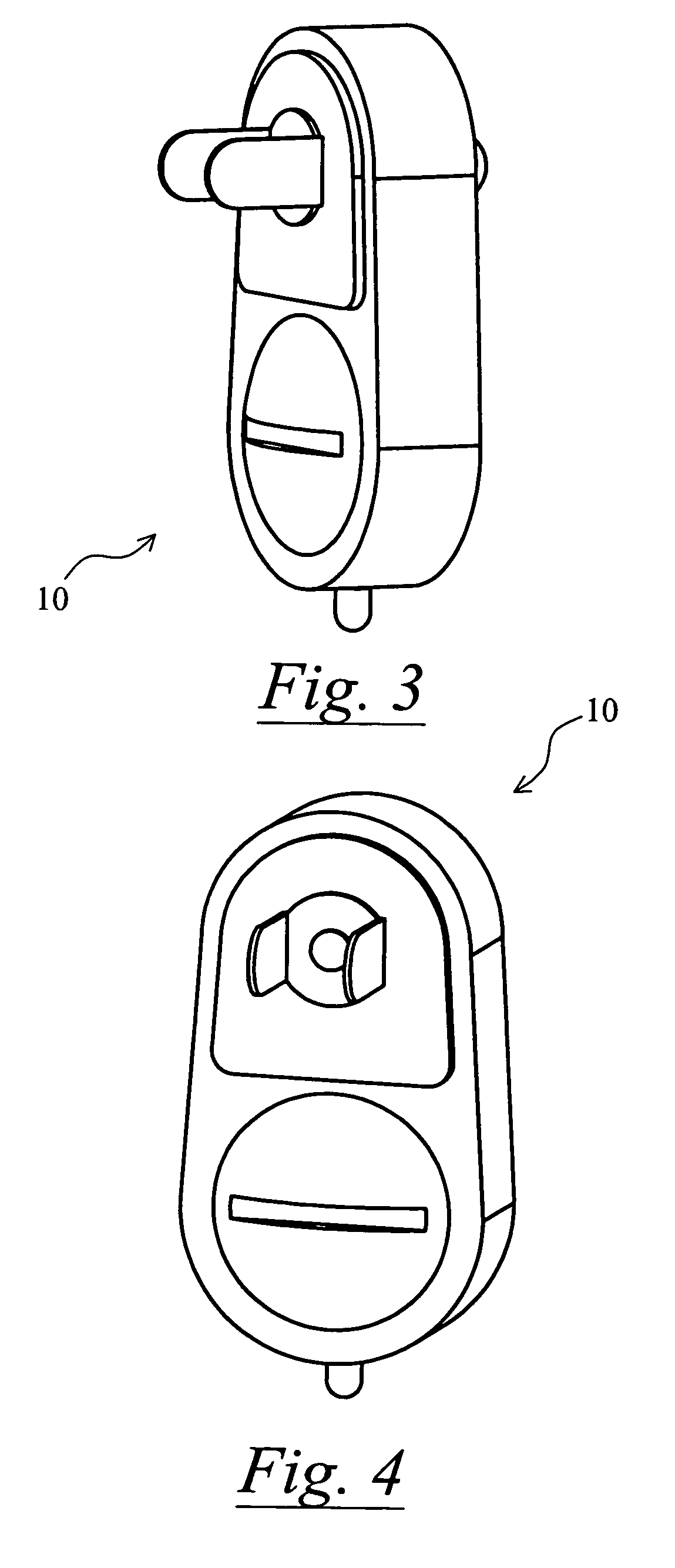

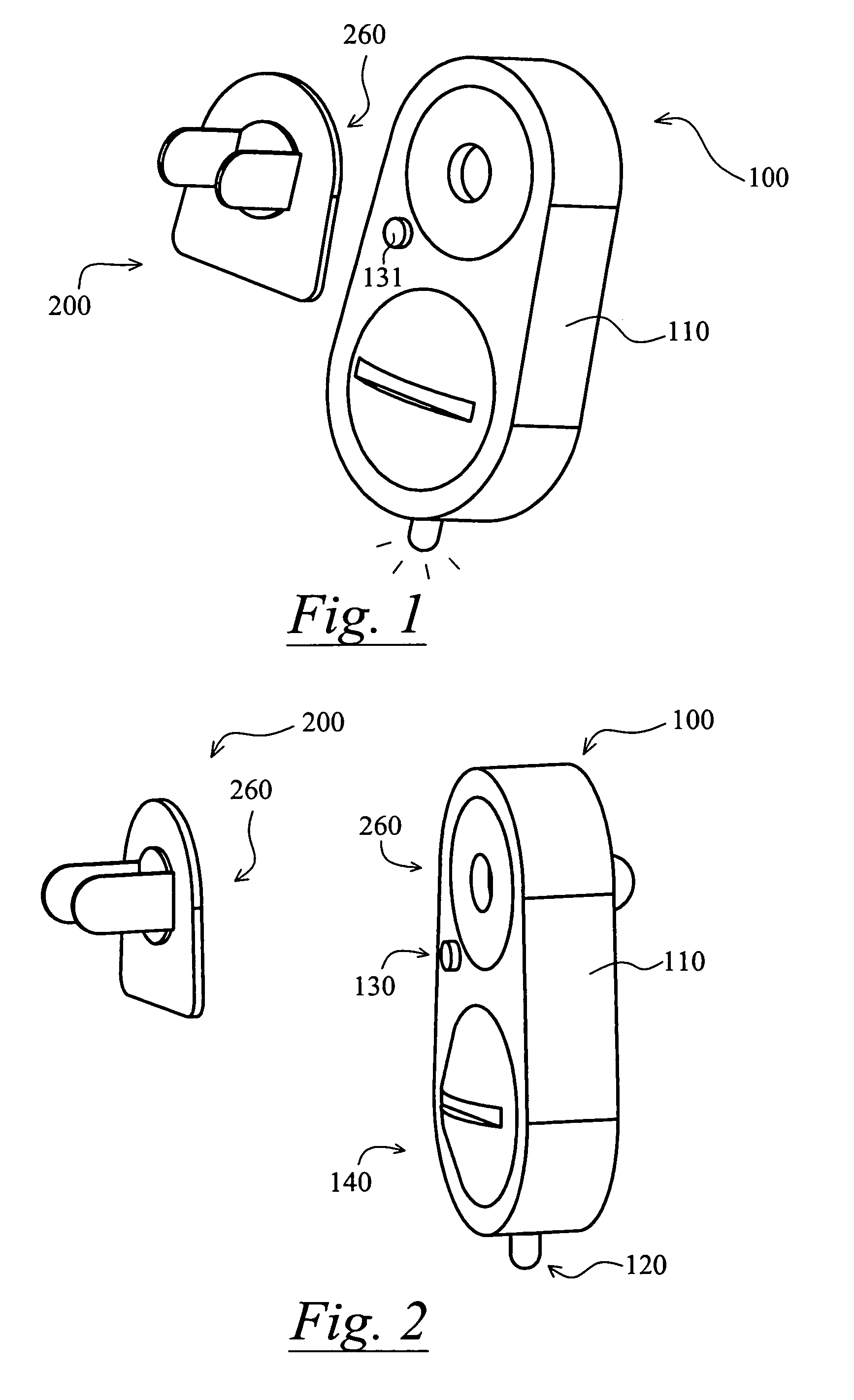

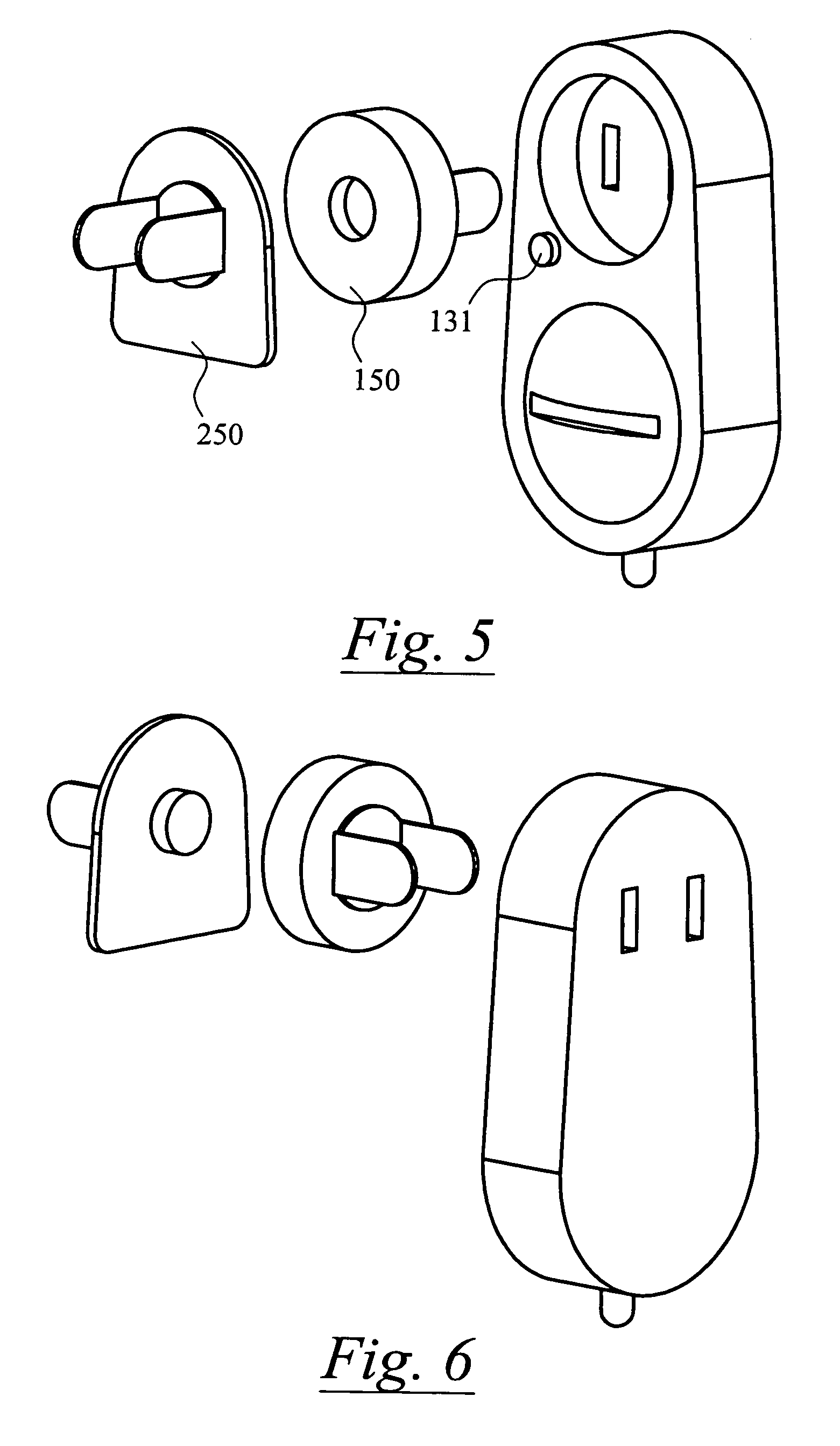

专利附图（8）
