用于附接到线状产品的手柄
Handles for attachment to wired products
US-7174605-B1用于将手柄附接到线状构件上。
专利摘要
本发明的多个方面提供了能够附接到线状构件的手柄。在一个示例性实施例中，手柄通常包括手柄部分、保持构件和键构件。手柄部分具有通道和从手柄部分的至少一个外表面延伸到通道中的孔。通道被配置为在其中接收线状构件的至少一部分。保持构件被配置为接收在通道内。保持构件具有孔。键构件被配置为接合在手柄部分的孔和保持构件的孔内。键构件在保持构件的孔内的接合能够抑制保持构件从通道脱出，从而将线状构件的至少一部分可操作地捕获在通道内，并由此将手柄部分附接到线状构件。

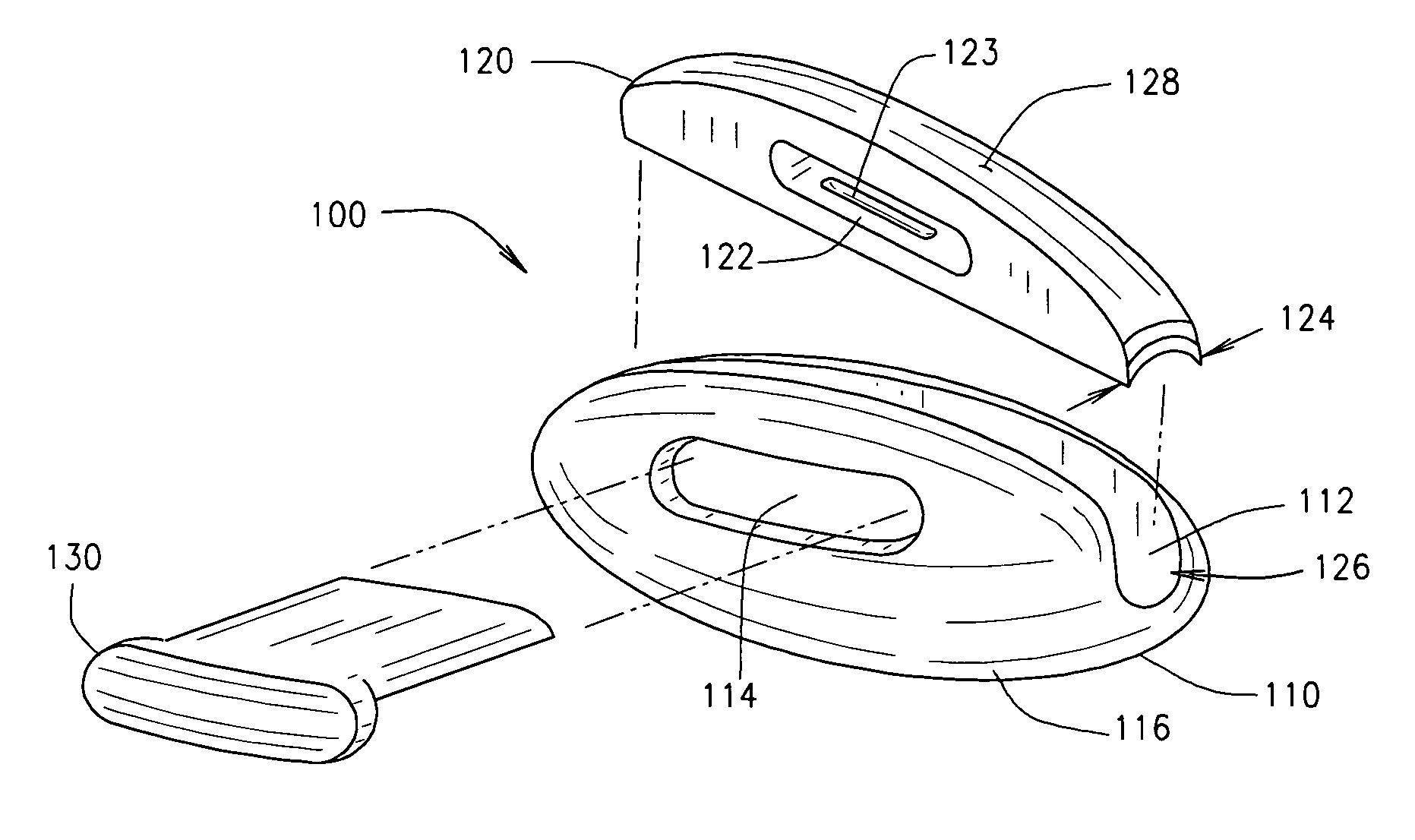

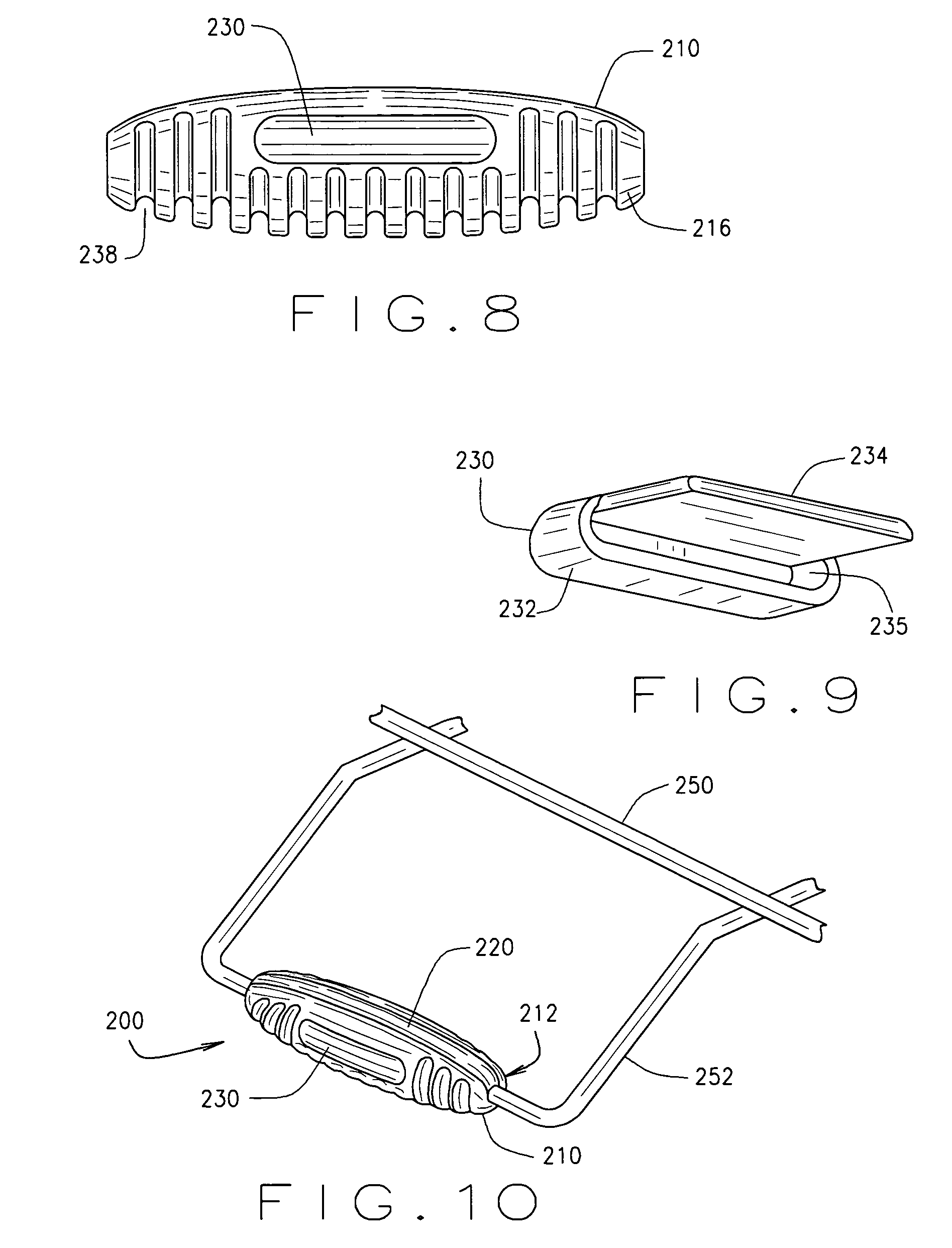

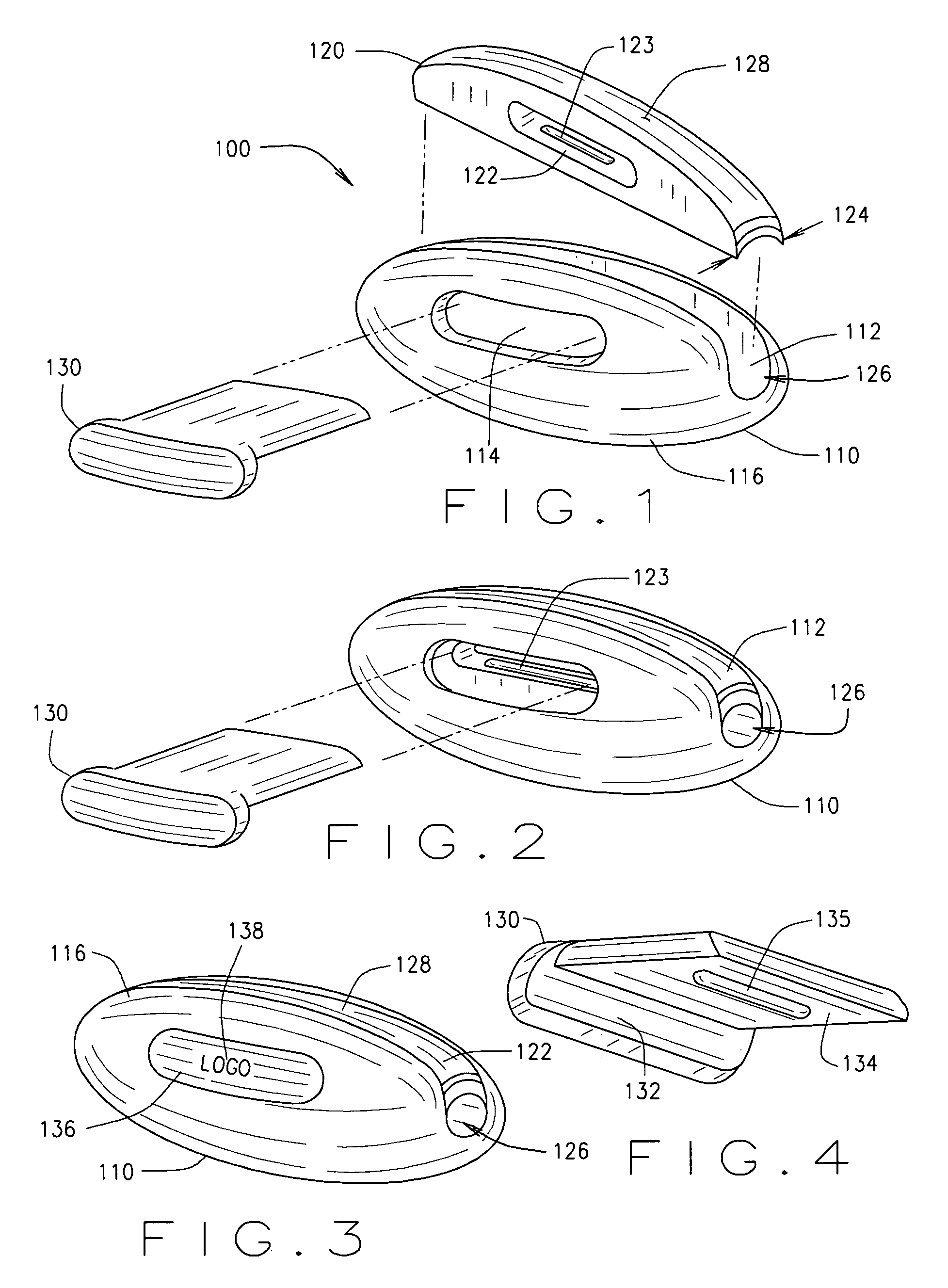

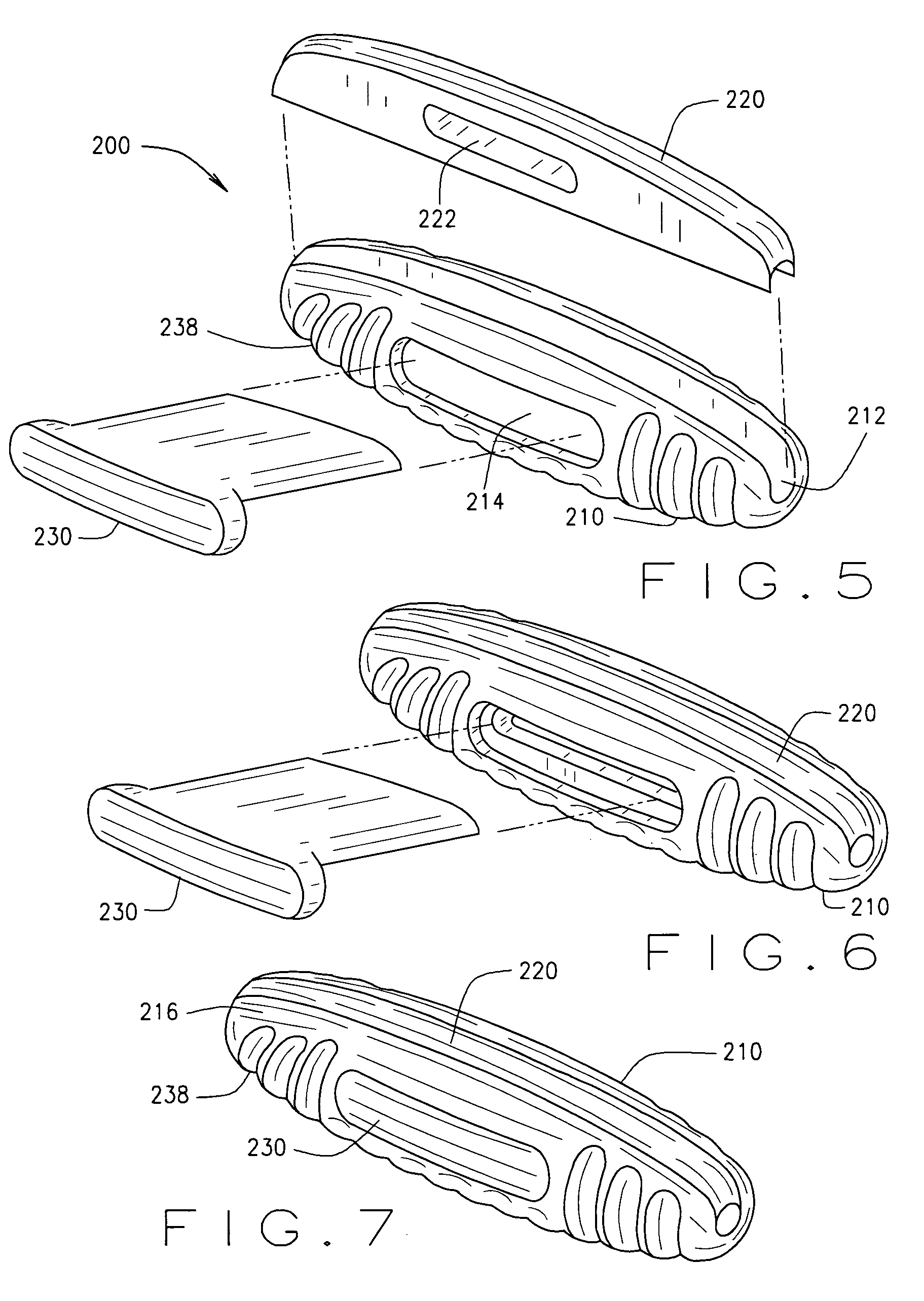

Original abstractVarious aspects of the invention provide handles that can be attached to wire-like members. In one exemplary embodiment, a handle generally includes a handle portion, a retaining member, and a key member. The handle portion has a channel and an aperture extending from at least one outer surface of the handle portion into the channel. The channel is configured to receive at least a portion of a wire-like member therein. The retaining member is configured to be received within the channel. The retaining member has an aperture. The key member is configured to be engaged within the handle portion's aperture and the retaining member's aperture. Engagement of the key member within the retaining member's aperture can inhibit the egress of the retaining member from the channel to operatively trap at least a portion of a wire-like member within the channel, and, thereby, attach the handle portion to the wire-like member.
专利附图（8）
