在手提袋组件中固定贵重物品的方法

Method of securing valuables in a tote bag assembly

US-7155881-B1

用于在沙滩等场所安全存放贵重物品。

专利摘要

一种贵重物品固定手提袋组件和方法,包括具有底壁和从底壁向上延伸的周壁的壳体。底壁和周壁均为柔性。周壁具有上边缘,形成多个外翻盖。内翻盖附接至周壁的内表面并将壳体分为上部和下部。紧固件可移除地穿过外翻盖延伸,使得外翻盖固定在一起以限定壳体的闭合位置。壳体的下部填充有沙子,贵重物品放置于壳体的上部。然后外翻盖用紧固件固定在一起。

Original abstractA valuable securing tote bag assembly and method includes a housing that has a bottom wall and a peripheral wall that is attached to and extends upwardly from the bottom wall. Each of the bottom and peripheral walls is flexible. The peripheral wall has an upper edge that forms a plurality of outer flaps. An inner flap is attached to an inner surface of the peripheral wall and divides the housing into an upper portion and a lower portion. A fastener is removably extendable through the outer flaps so that the outer flaps are secured together to define a closed position of the housing. The lower portion of the housing is filled with sand and valuables are positioned in the upper portion of the housing. The outer flaps are then secured together with the fastener.

专利附图(6)

US-7155881-B1 figure 1
1

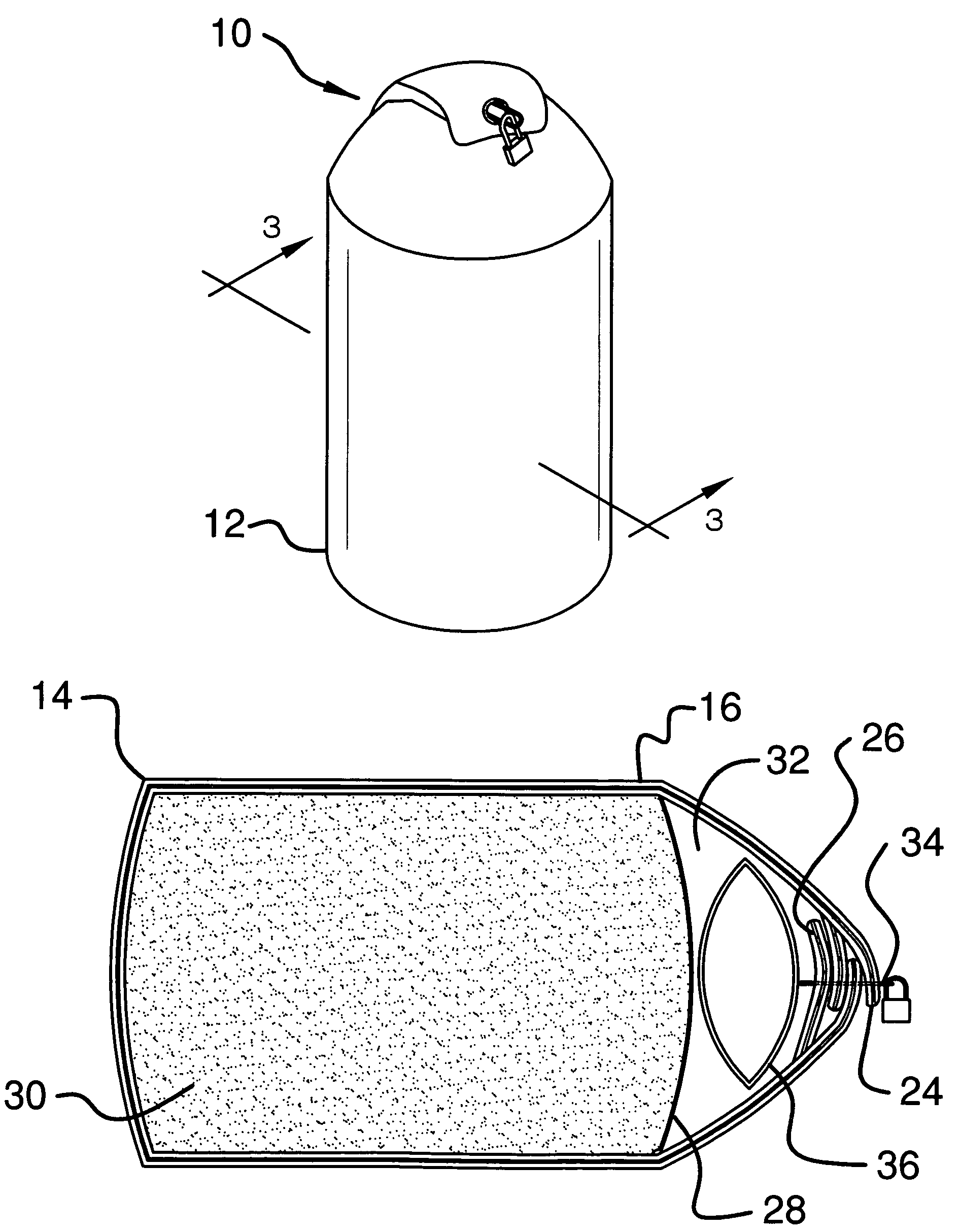

US-7155881-B1 figure 2
2
US-7155881-B1 figure 3
3

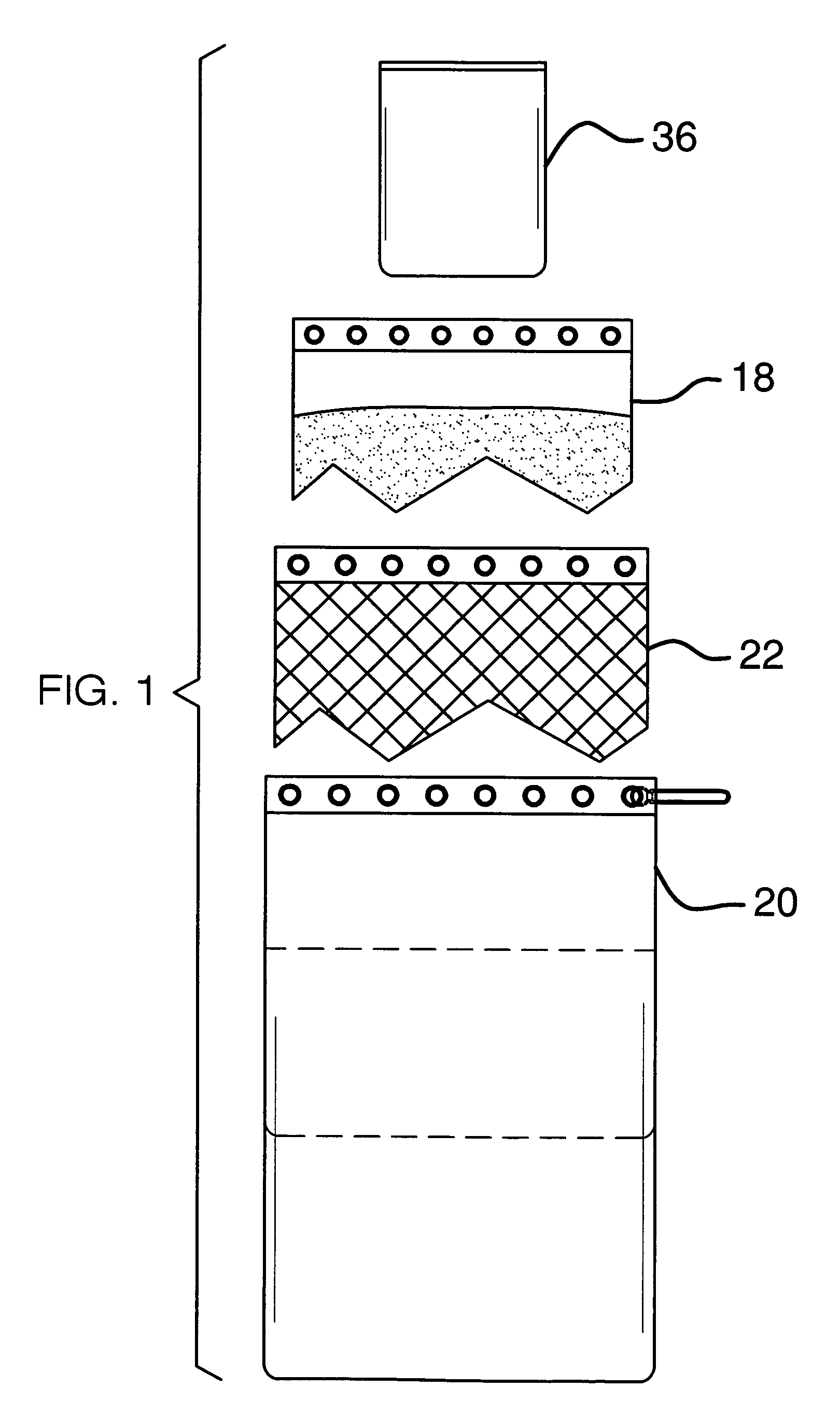

US-7155881-B1 figure 4
4
US-7155881-B1 figure 5
5

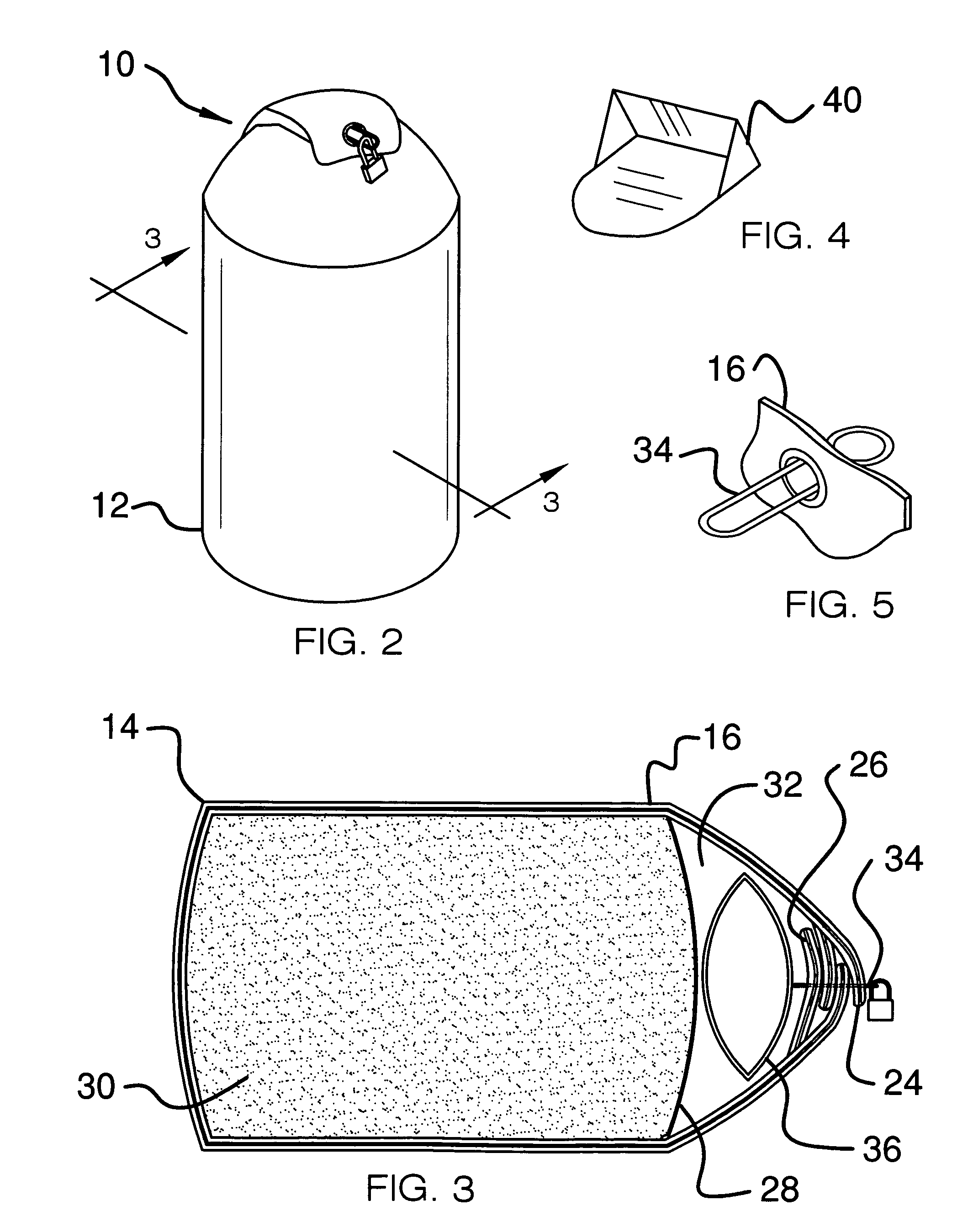

US-7155881-B1 figure 6
6
