来源记录显示 Expired
带有附件保持器的隔热冰柜
Insulated ice chest with accessory holders
US-7140507-B2用于户外冷藏物品并方便放置饮料等附件。
专利摘要
一种改进的隔热冷却器，其外壁上可拆卸地固定有附件保持器。一个示例性保持器用于容纳容器装饮料。该保持器顶部由刚性塑料上环制成，底部可具有柔性织物或网状下部，使得保持器可嵌套到盖顶面的接收座中以便于存放。这种布置的优点是允许用户方便地取用冰柜内的物品，而不必移走原本会放在冰柜盖上的饮料。冰柜上还可设有一个或多个连接件，允许将钓鱼竿保持器、伞保持器或其他附件保持器固定到冷却器上。
Original abstractAn improved insulated cooler has accessory holders detachably secured to its outer wall. An exemplary holder is provided for containerized drinks. The holder is made of a rigid plastic upper ring at the top and may have flexible fabric or mesh lower portion at the bottom such that the holders can be nested into receptacles in the top surface of the lid for convenient storage. This arrangement provides the benefit of permitting the user to access conveniently the contents of the ice chest without having to remove drinks that otherwise would be sitting on the lid of the ice chest. There also may be one or more connections on the ice chest that permit a fishing rod holder, an umbrella holder, or other accessory holder to be affixed to the cooler.

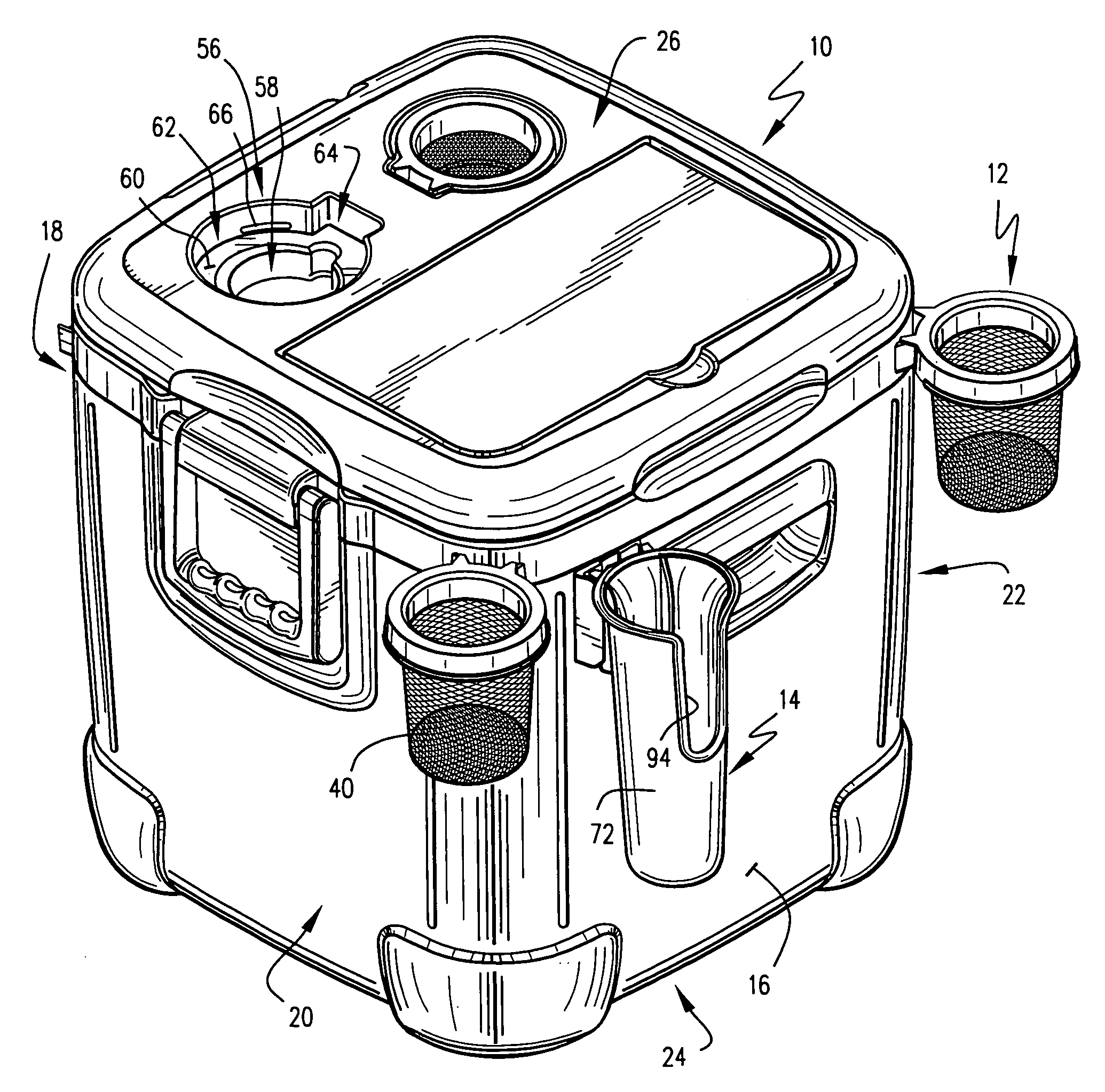

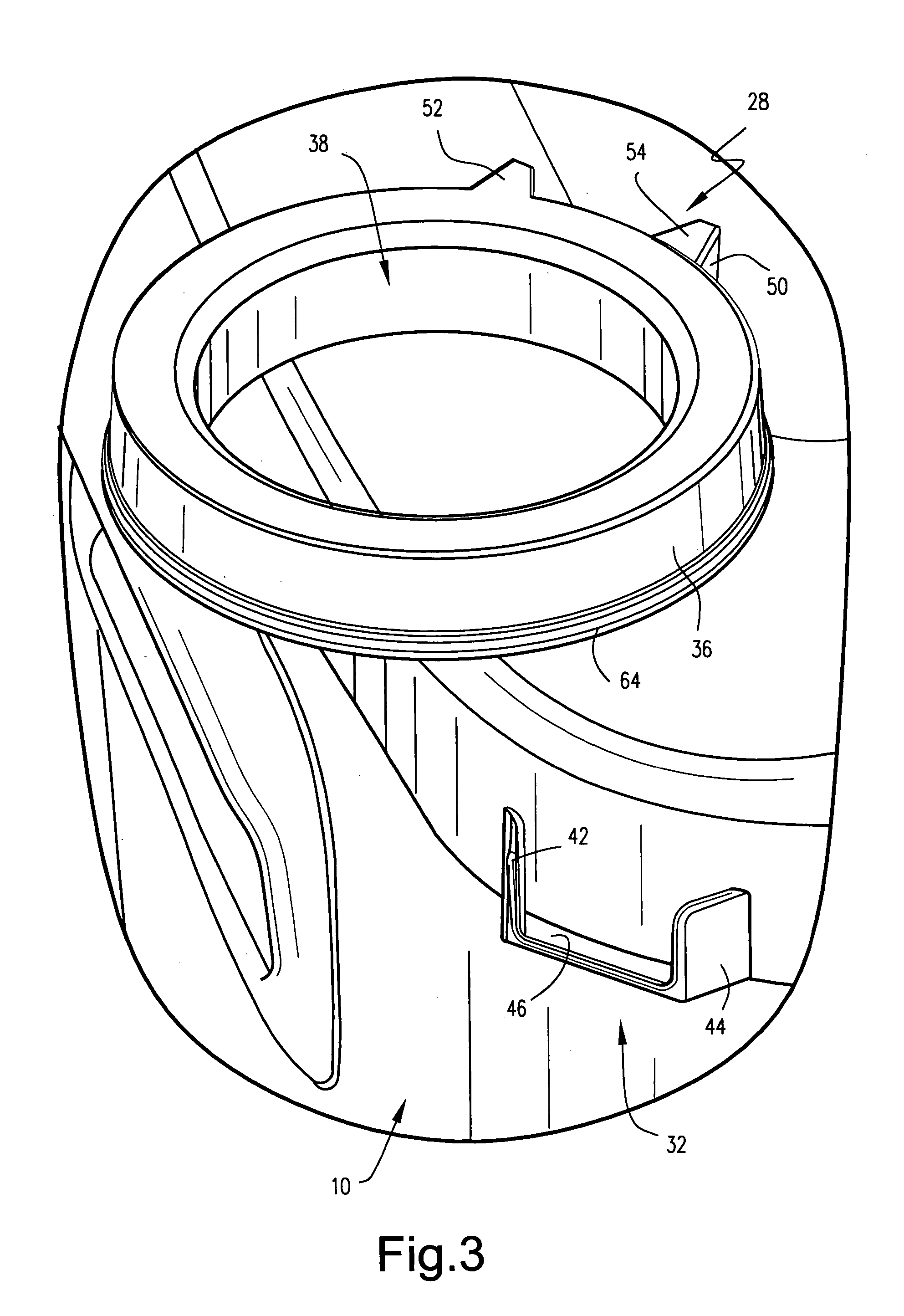

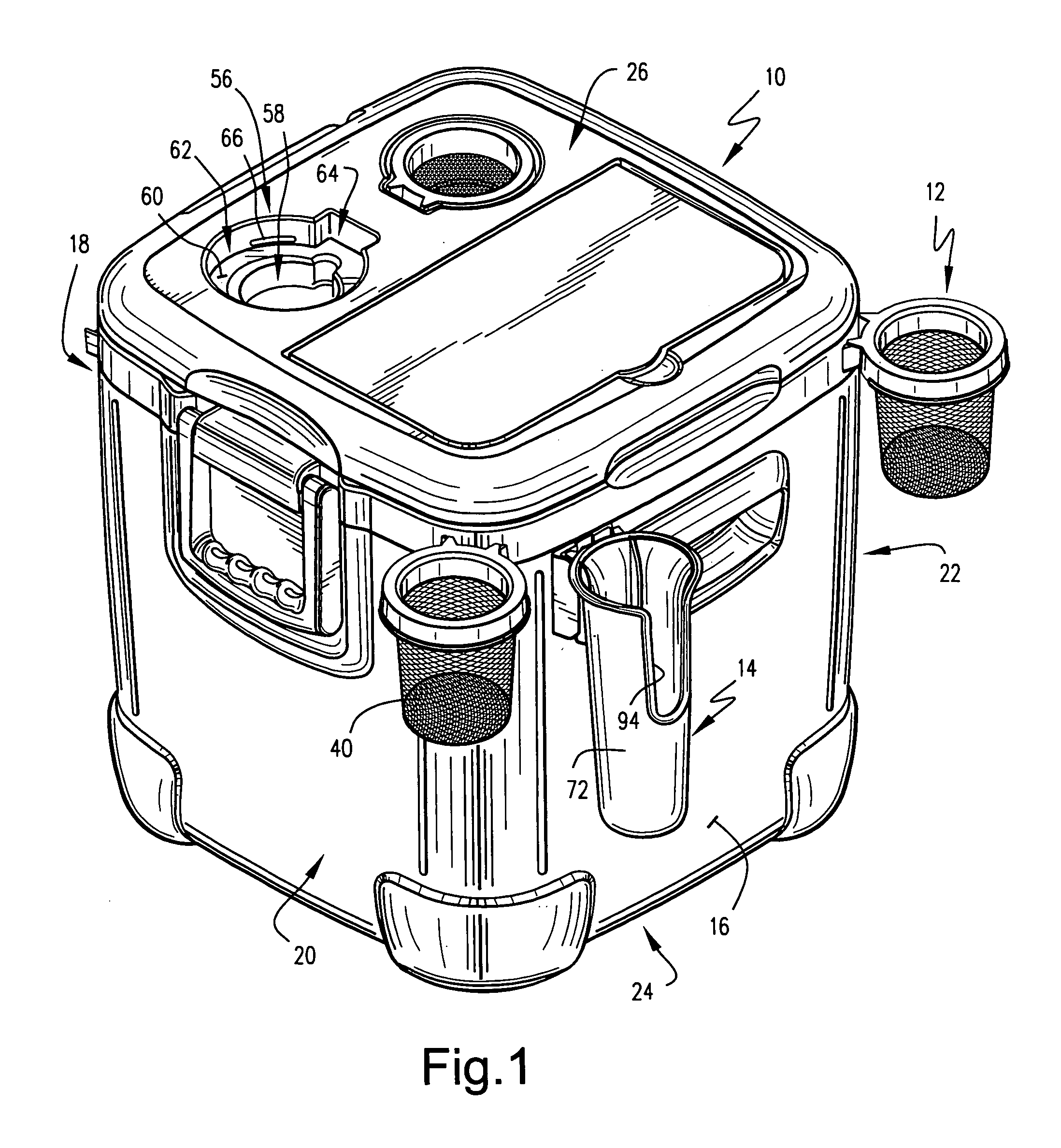

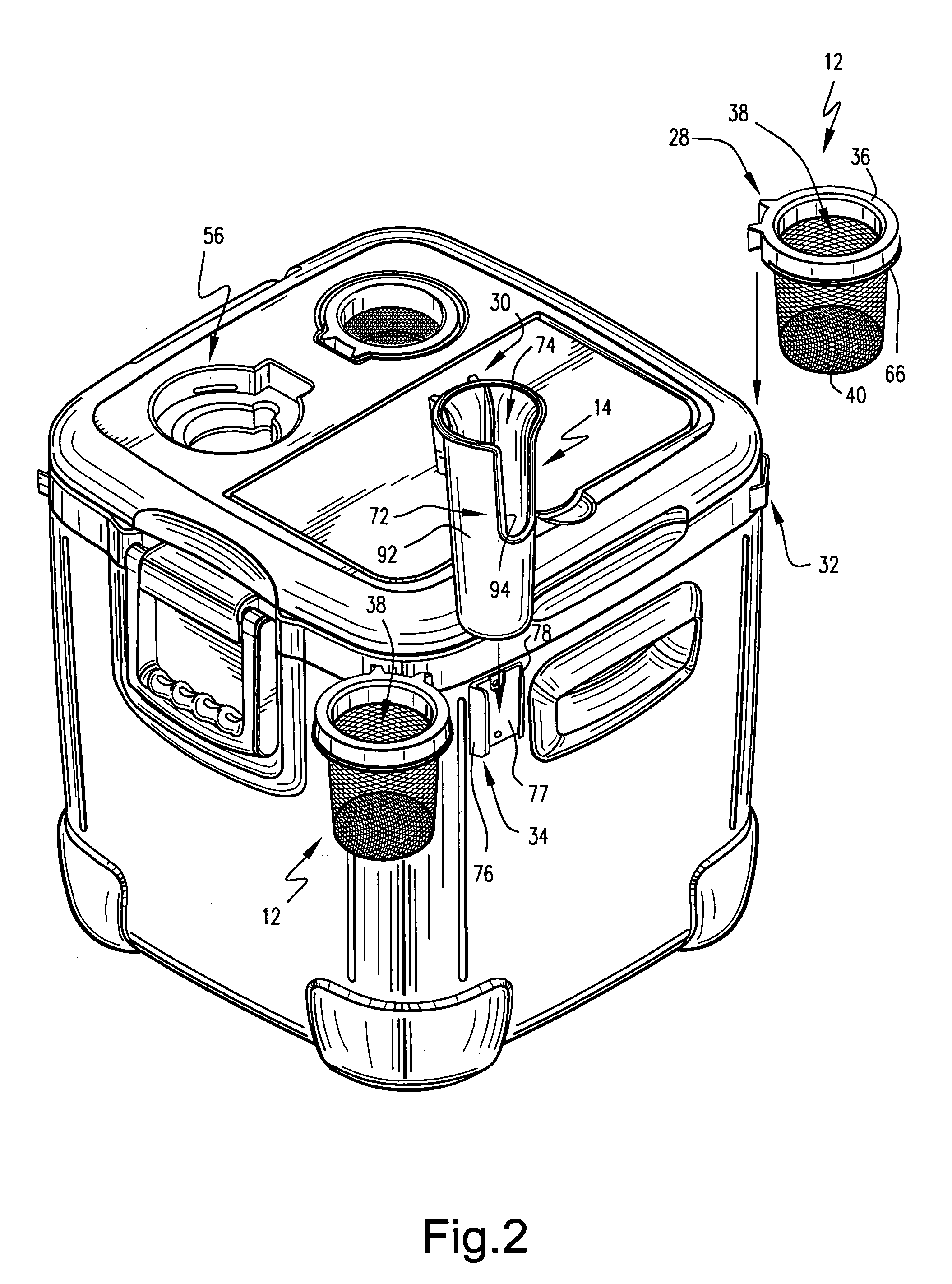

专利附图（8）
