提供一种带可伸缩把手的多功能行李箱。
专利摘要
一种随身行李箱，包括壳体，该壳体具有可旋转地安装在其侧面上的轮子以使壳体自由移动，在其侧面中形成的第一凹入区域和在壳体的侧面中形成的与第一凹入区域连通的第二凹入区域，设置有第三凹入区域的主板，以及牢固且可滑动地容纳在第三凹入区域中以能够从主板伸出的第一和第二辅助把手。第二辅助把手能够从第三凹入区域伸出，并且第一辅助把手仅当主板从第一凹入区域伸出并相对于壳体枢转时才能从第三凹入区域伸出。
Original abstractA carry-on luggage includes a casing having wheels rotatably mounted on a side face of the casing to allow the casing to move freely, a first recessed area defined in the side face thereof and a second recessed area defined in a side face of the casing to communicate with the first recessed area, a main board provided with a third recessed area, and a first and a second auxiliary handles securely and slidably received in the third recessed area to be able to extend out of the main board. The second auxiliary handle is able to extend out of the third recessed area and the first auxiliary handle is able to extend out of the third recessed area only when the main board is extended out of the first recessed area and pivoted relative to the casing.

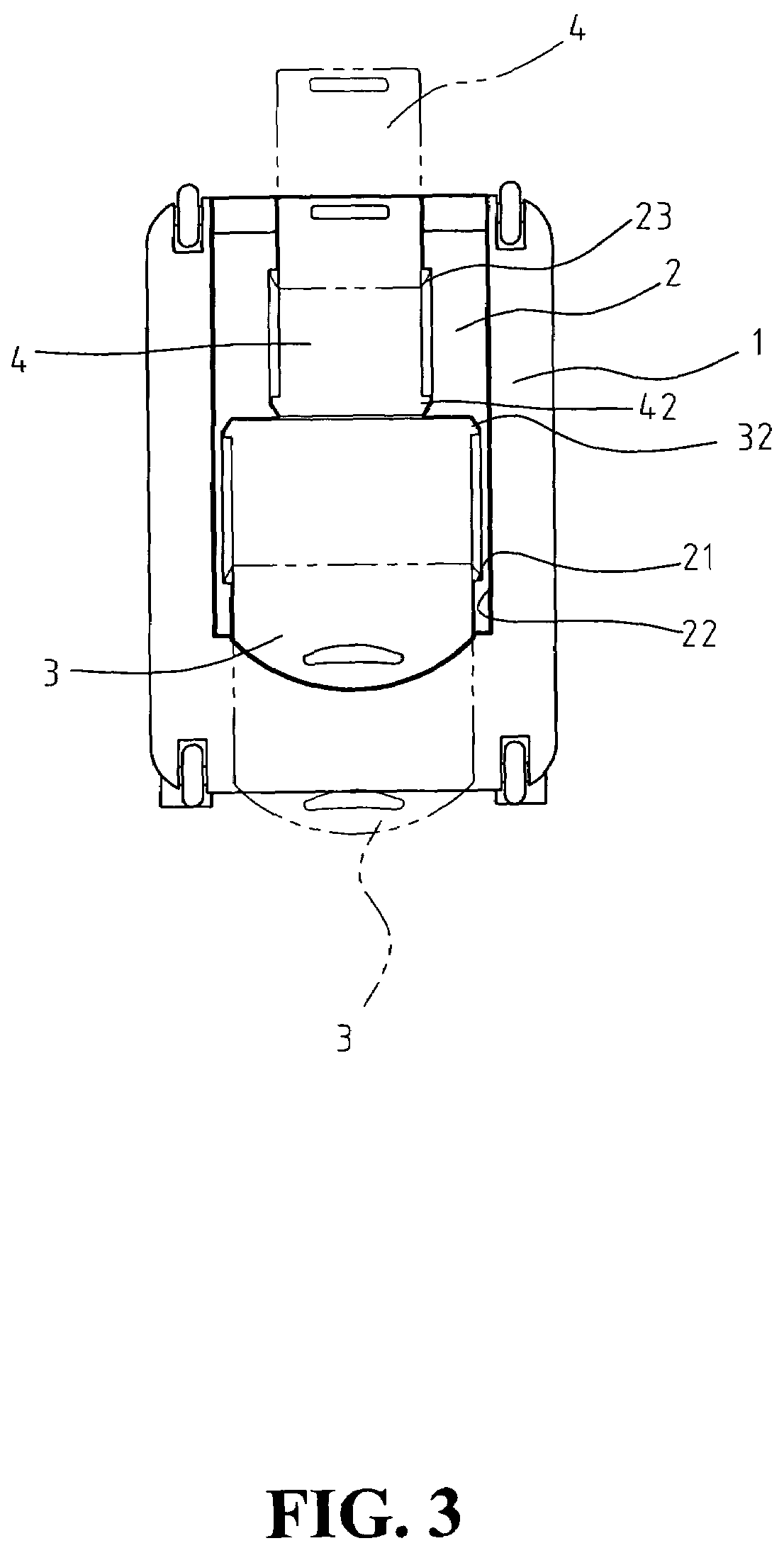

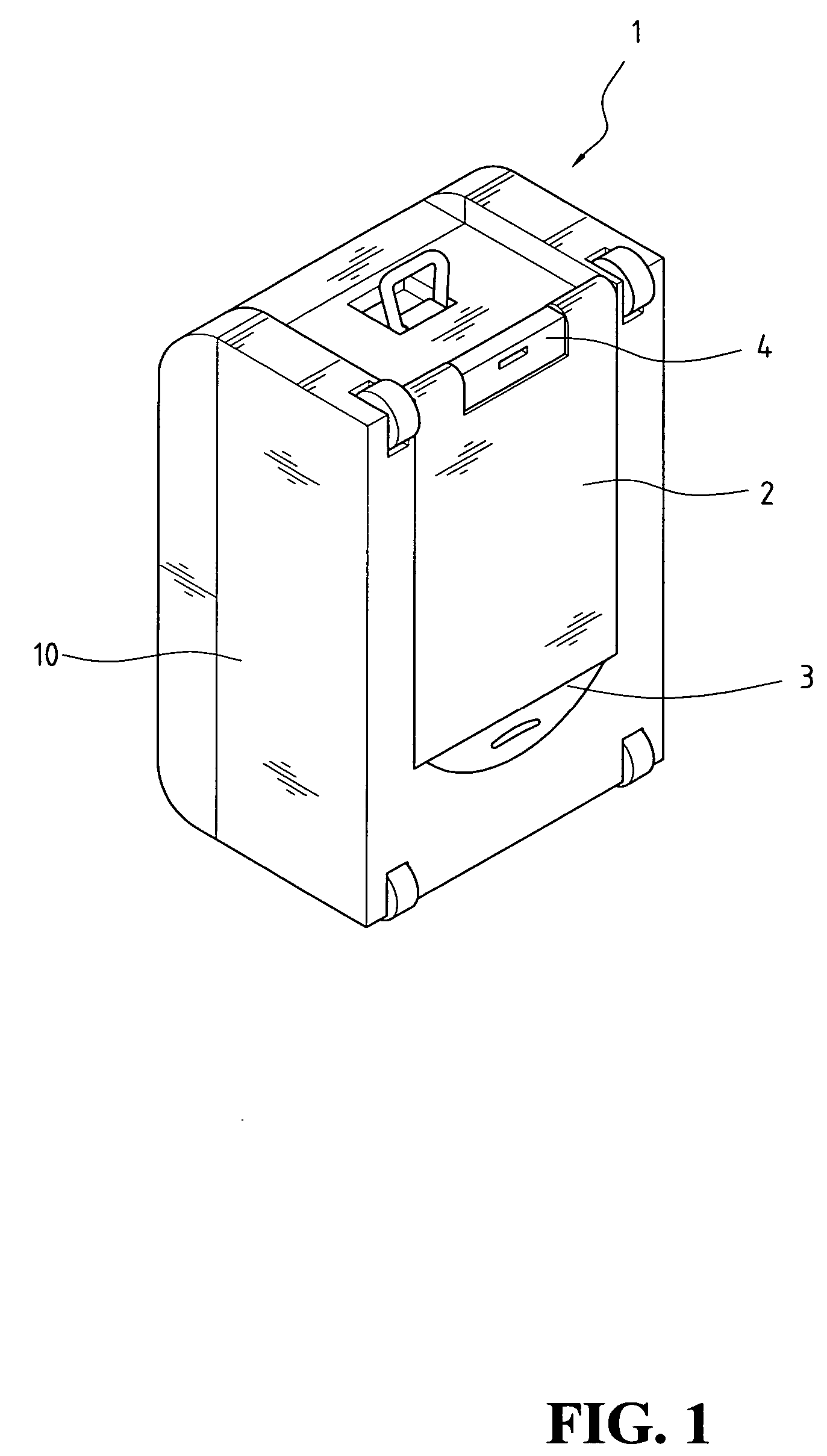

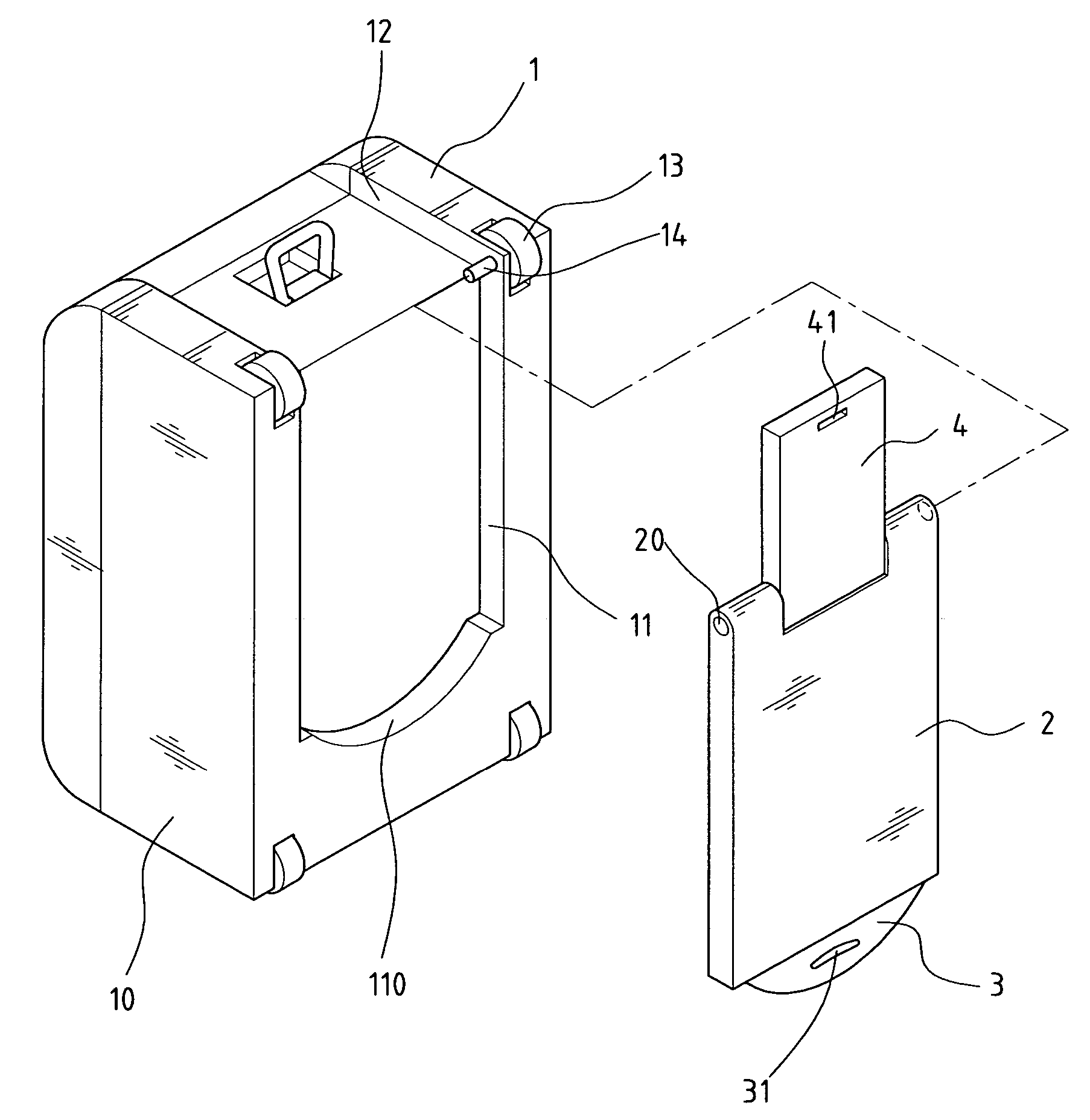

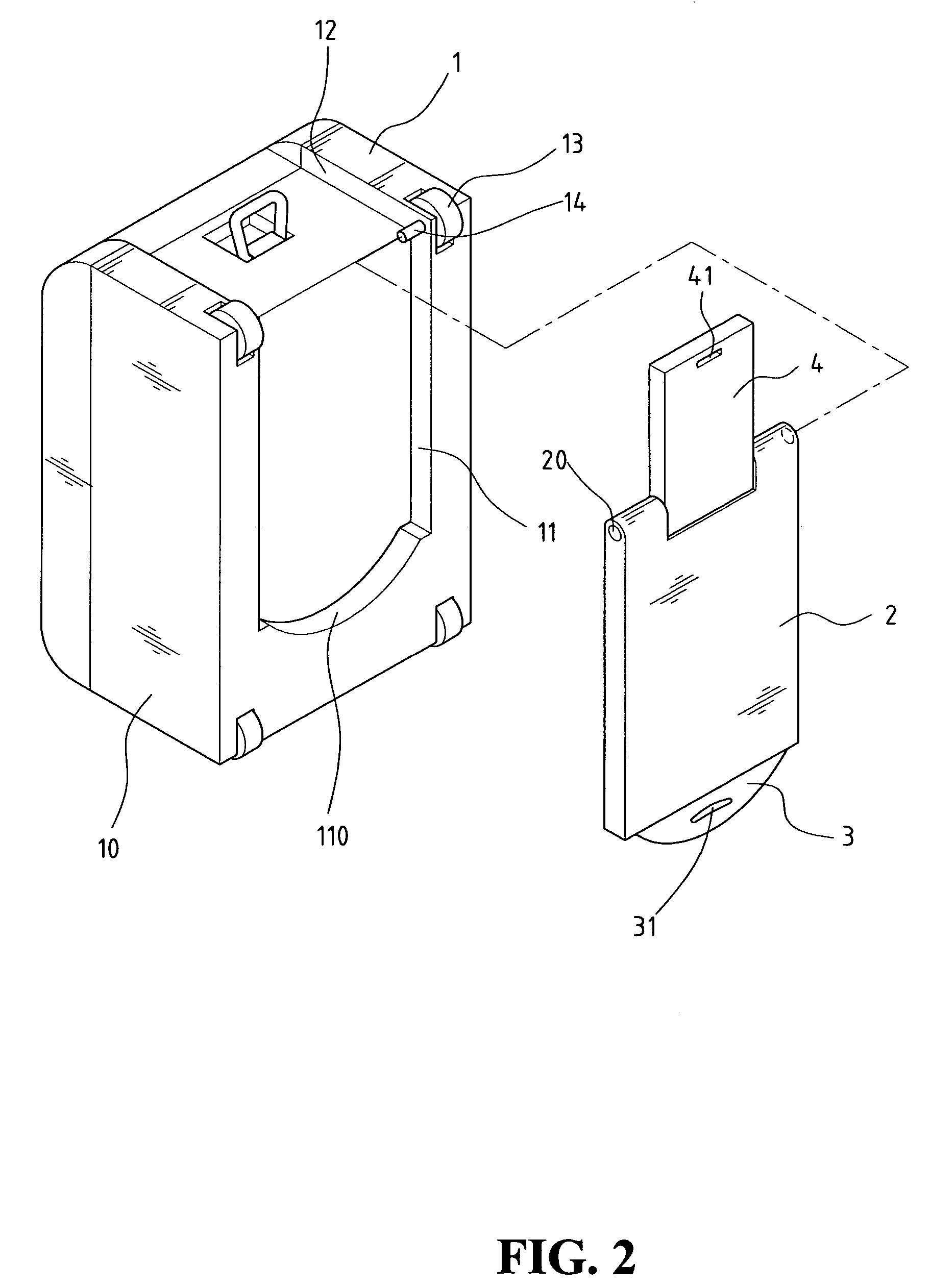

专利附图（8）
